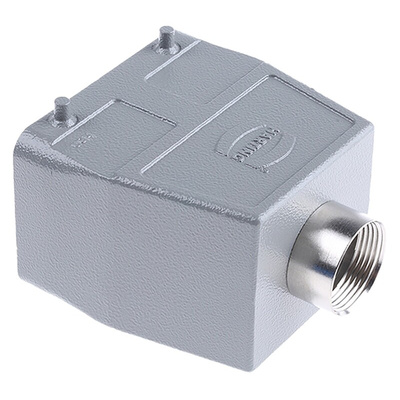

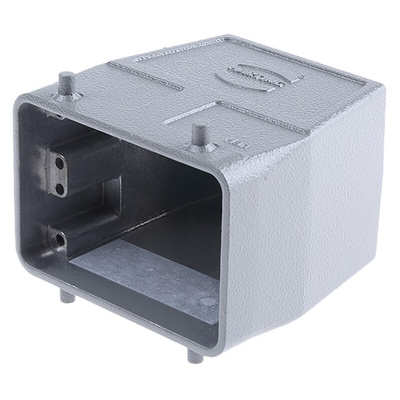

09200320420, HARTING Han A Heavy Duty Power Connector Hood, PG21 Thread

Hoods and Housings

Metal bodied
Accepts two Harting ’Size’ 16A inserts
Two locking lever functionality on housing and hoods

Warning

These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection.

Approvals

UL, CSA, SEV

Range 4 - (Harting Size 32A)

These hoods and housings are compatible with appropriate inserts from the Han A®, and D series. The 'compatibility' details that relationship by indicating the specific Harting insert series, together with a stock number typical of each insert range.

Dimensional Drawing Top Entry Hood 0920 032 0420
