09300161750, HARTING Han B Heavy Duty Power Connector Hood

Hoods and Housings 16B

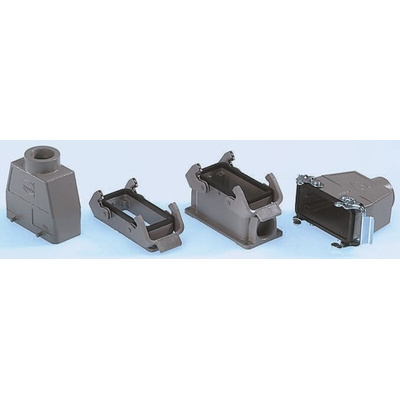

Harting Han 16B hoods and housings offered in a wide selection of formats, single lever, double lever, high and low construction, suitable for many applications. Utilises Han inserts, modules and frames.

• Metal bodied
• Available for one or two locking levers
• Locking levers are available either mounted on the hood or the housing see 114-8131

Warning

These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection.

Approvals

UL, CSA, SEV

Harting Han B Coupler Hood

From Harting, this bottom entry coupler hood is for use with female Han Series connector inserts. This coupler hood has a robust aluminium diecast construction and boasts a high degree of ingress protection. The powder coated hood has a single locking clip on top of the hood to ensure a secure connection.

Features and Benefits

Size 16B
Thread size PG21
IP65
Operating temperature -40°C to +125°C

Range 7 - (Harting Size 16B)

These hoods and housings are compatible with appropriate inserts from the Han D®, DD, E,ES EE, Com, HsB and Modular series. The 'compatibility' table associated with item types 1 to 4 details that relationship by indicating the specific Harting insert series, together with a stock number typical of each insert range. If selecting inserts from the Modular series, please note that four inserts are accommodated within these 16B housings.

Dimensional Drawing 0930 016 1750
