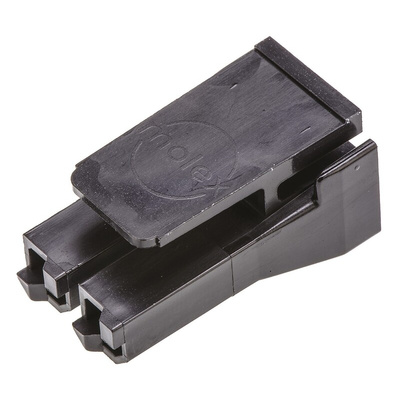

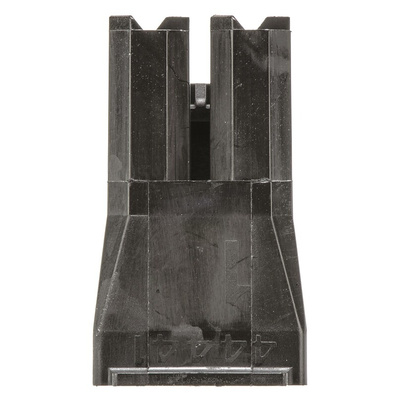

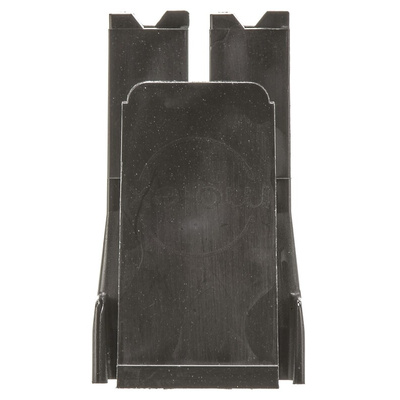

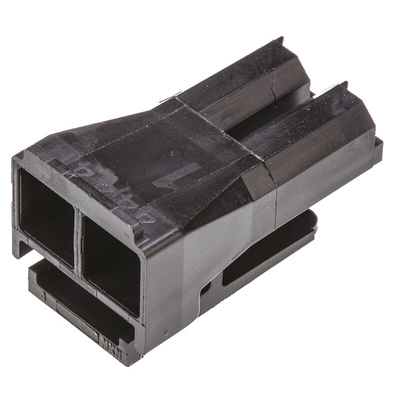

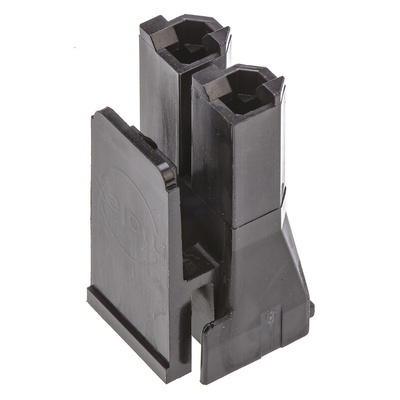

44441-2002, Molex, Sabre Female Connector Housing, 7.49mm Pitch, 2 Way, 1 Row, Корпус разъема

3639875
Номер производителя: 44441-2002Производитель: Molex
Цена за шт. (норма упаковки 5 шт)
273.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Molex Sabre 7.5 mm Power Connector Crimp Housings, 44441 Series

Sabre power connector crimp housings with a 7.5mm pitch for use in high current, high vibration wire to wire and wire to board applications. These Sabre crimp terminal housings have separate terminal cavities that provide full terminal isolation. Polarization and positive locking features ensure accurate and secure mating to the plug or header connector. The positive locking latch also prevents accidental disengagement. An extra feature of these Sabre crimp housings is an anti-tangle latch designed to prevent accidental latch breakage and reduce tangling during assembly of the harness. The female crimp contacts for these crimp housings feature integral Terminal Position Assistance (TPA) which locks the terminal to the housing to prevent terminal back-out in high vibration applications. The TPA is activated optionally. These Sabre power connector crimp housings will mate with the 43160 series PCB mount Sabre header connectors and the 43680 series cable mount Sabre plug connectors. The 43375 series crimp contacts must be purchased separately.

Features and Benefits

Suitable for high current and high-voltage applications up to 18A at 600 V
Fully isolated contact cavities
TPA on terminals to prevent terminal back-out in high vibration applications
Positive latching for secure connection to mating plug or header
Anti-tangle latch to prevent accidental latch breakage and tangling during harness assembly

Applications

These Sabre power connectors are ideal for use in a wide range of applications which require current ratings of up to 18 A per pin at 600 V. Applications include Networking, telecom and storage equipment, medical equipment, business equipment, vending and gaming, appliances/white goods, automotive and transportation and military/aerospace (COTS). Other industries include HVAC, industrial, security, solar and lighting.

Standards

Molex Connector Housing, For Use With Receptacles, 18 to 14AWG - Sabre Series - 44441-2002

Keep your wire connection safe from dirt and moisture by enclosing it in this connector housing from Molex. It's designed for use with a Sabre-series receptacle and you can use it to link your terminal to a cable or board. The two-contact design gives you enough space to set up a dual-wire connection. The unit's positive latch feature means it locks on tightly to your mating plug, preventing it from wiggling loose in vibrating conditions.

Features & Benefits

• Anti-tangle latch helps prevent receptacle mix-up and breakage
• Accepts wires sized from 18 to 14AWG for compatibility with commonly used conductors

Applications

• Military equipment
• Marine engineering
• Power generation
• Lighting fixtures

Does this housing protect against electric shocks?

Yes, it has a durable nylon body and fully isolated contact cavities to boost insulation protection and shield you from electric shocks.

Standards

UL E29179; UL1950; CSA LR19980

Molex Sabre Series

7.5mm pitch
Range of robust, single-row connectors, for high current applications up to 18A
System allowing wire-wire and wire-board connection
Suitable for 14 to 18 awg
Positive locking casings with audible click, to prevent accidental disconnection
Casings polarised to ensure correct mating
Contacts completely insulated within the casing

Техническая спецификация
pdfDatasheet
pdfLine Drawing
pdfDatasheet - 44441-2002
Длина:
15.82мм
Для использования с:
Sabre Receptacle
Кол-во контактов:
2
Количество рядов:
1
Концевая заделка:
Crimp
Материал корпуса:
Нейлон
Ориентация корпуса:
Прямой
Род:
Female
Серия:
Sabre
Тип монтажа:
Кабельное крепление
Шаг:
7.49мм
Ширина:
15.24мм
