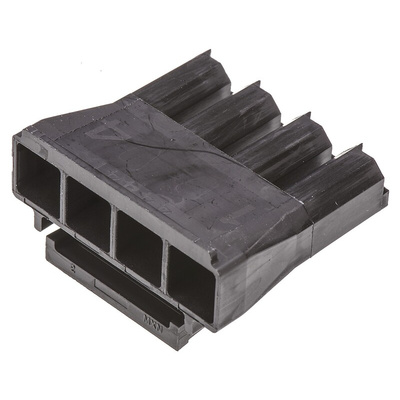

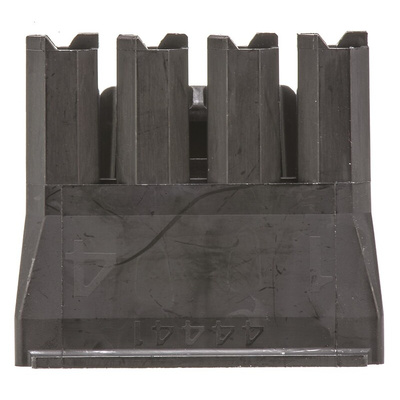

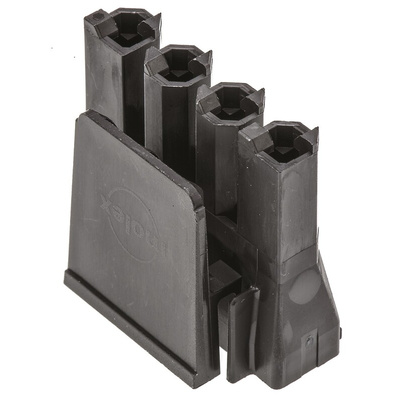

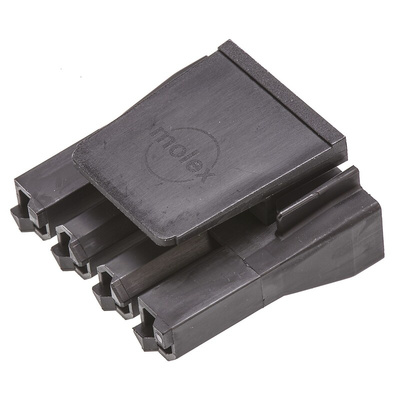

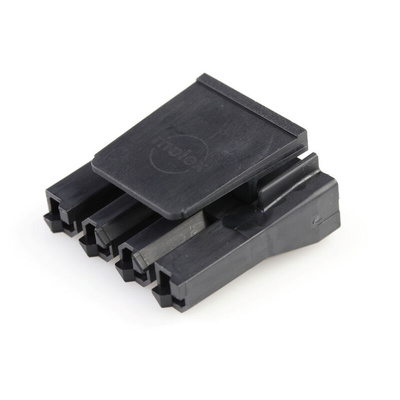

44441-2004, Molex, Sabre Female Connector Housing, 7.49mm Pitch, 4 Way, 1 Row, Корпус разъема

Molex Sabre 7.5 mm Power Connector Crimp Housings, 44441 Series

Sabre power connector crimp housings with a 7.5mm pitch for use in high current, high vibration wire to wire and wire to board applications. These Sabre crimp terminal housings have separate terminal cavities that provide full terminal isolation. Polarization and positive locking features ensure accurate and secure mating to the plug or header connector. The positive locking latch also prevents accidental disengagement. An extra feature of these Sabre crimp housings is an anti-tangle latch designed to prevent accidental latch breakage and reduce tangling during assembly of the harness. The female crimp contacts for these crimp housings feature integral Terminal Position Assistance (TPA) which locks the terminal to the housing to prevent terminal back-out in high vibration applications. The TPA is activated optionally. These Sabre power connector crimp housings will mate with the 43160 series PCB mount Sabre header connectors and the 43680 series cable mount Sabre plug connectors. The 43375 series crimp contacts must be purchased separately.

Features and Benefits

Suitable for high current and high-voltage applications up to 18A at 600 V
Fully isolated contact cavities
TPA on terminals to prevent terminal back-out in high vibration applications
Positive latching for secure connection to mating plug or header
Anti-tangle latch to prevent accidental latch breakage and tangling during harness assembly

Applications

These Sabre power connectors are ideal for use in a wide range of applications which require current ratings of up to 18 A per pin at 600 V. Applications include Networking, telecom and storage equipment, medical equipment, business equipment, vending and gaming, appliances/white goods, automotive and transportation and military/aerospace (COTS). Other industries include HVAC, industrial, security, solar and lighting.

Standards

Molex Sabre Series Connector Housing, Nylon, Straight - 44441-2004

This Molex connector housing is a high quality component designed for use with sabre receptacle connectors. Featuring a straight body orientation and made of durable nylon housing material, this female connector housing ensures reliable connections in various applications. With a compact design and cable mount feature, it is perfect for installations where space is limited. The sabre series connector boasts top notch quality and performance, making it a preferred choice for professionals in the automation, electronics, electrical, and mechanical industries.

Features & Benefits

• Straight body orientation for easy installation and secure connections
• Female connector housing suitable for Sabre receptacle connectors
• Made of high quality nylon material for long lasting durability
• Cable mount design for convenient setup in restricted spaces
• Sabre series connector delivers exceptional performance and reliability

Applications

• Designed for use with Sabre receptacle connectors
• Ideal for automation, electronics, electrical, and mechanical industries
• Suitable for applications requiring a compact and reliable connector solution

Will it fit cables with different diametres?

The cable mount design of this connector housing allows it to accommodate cables of different sizes for versatile applications.

Is it suitable for outdoor installations?

The durable nylon housing material makes it suitable for both indoor and outdoor installations, providing reliable connections in various environments.

Standards

UL E29179; UL1950; CSA LR19980

Molex Sabre Series

7.5mm pitch
Range of robust, single-row connectors, for high current applications up to 18A
System allowing wire-wire and wire-board connection
Suitable for 14 to 18 awg
Positive locking casings with audible click, to prevent accidental disconnection
Casings polarised to ensure correct mating
Contacts completely insulated within the casing

CSA LR19980
