43178-2002, Molex Sabre Series Male Crimp Terminal, 20AWG Min, 14AWG Max, Контакты

Sabre Contacts & Tooling

Four points of electrical contact for greater contact reliability
14-18 awg
Hand Crimp Tool for Sabre Flat Blade Crimp Terminals
Activation/Deactivation Tool to be used with 43178 Wire to Wire Terminal Series.
Extraction Tool used to extract terminals from housings.

Standards

UL E29179 and UL1950 ; CSA LR19980

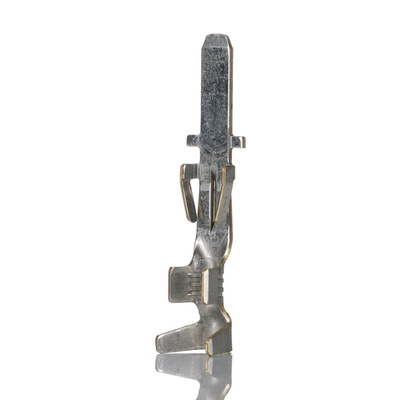

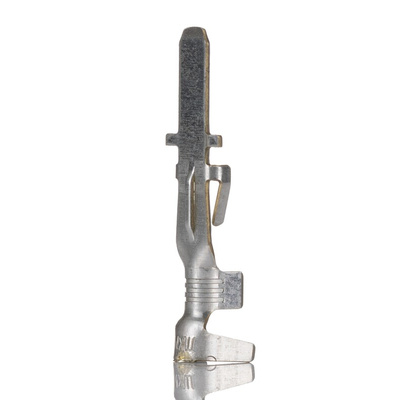

Molex Crimp Terminal, Tin-Plated, 18A Current Rating - Sabre 43178 Series - 43178-2002

Hook up a wire to your board using this male-gendered crimp terminal from Molex. It has four points of electrical contact to support reliable performance. The contact area is made from highly conductive brass, so delivers stable current transmissions. This unit is compatible with a crimp or compression-style termination method, so making a wire connection takes just a jiffy. You can insert cables that range in size from 20 to 14AWG into this handy piece of gear.

Features & Benefits

• Current rating of 18A to support high-current systems
• Durable tin contact plating resists corrosion
• Withstands harsh settings thanks to an operating temperature range of -40°C to +75°C

Applications

• Consumer electronics
• Railways and transportation
• Packaging machinery
• Robotics systems

How do I protect this terminal from contaminants?

To protect it from contaminants like dirt and moisture, seal the part in a connector housing (363-9831) from the Sabre range.

Standards

UL E29179; UL1950; CSA LR19980

Molex Sabre Series

7.5mm pitch
Range of robust, single-row connectors, for high current applications up to 18A
System allowing wire-wire and wire-board connection
Suitable for 14 to 18 awg
Positive locking casings with audible click, to prevent accidental disconnection
Casings polarised to ensure correct mating
Contacts completely insulated within the casing

Datasheet

Datasheet

Line Drawing - 43178-2002
