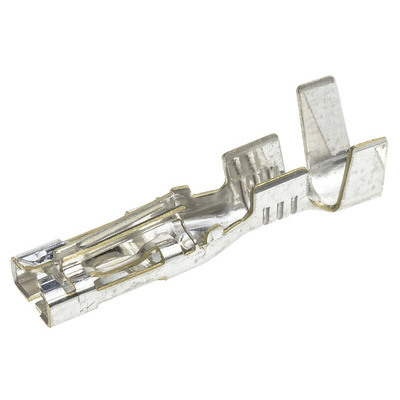

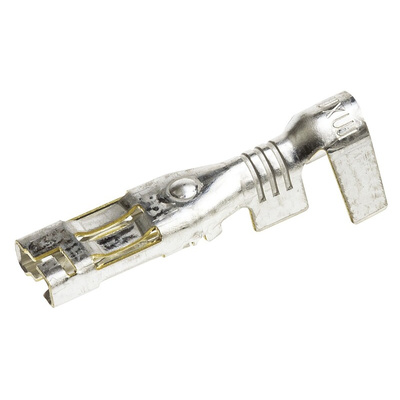

43375-1001, Molex Sabre Series Female Crimp Terminal, 16AWG Min, 18AWG Max, Контакты

Sabre Contacts & Tooling

Four points of electrical contact for greater contact reliability
14-18 awg
Hand Crimp Tool for Sabre Flat Blade Crimp Terminals
Activation/Deactivation Tool to be used with 43178 Wire to Wire Terminal Series.
Extraction Tool used to extract terminals from housings.

Standards

UL E29179 and UL1950 ; CSA LR19980

Molex Crimp Terminal, 600V Maximum Voltage, Up to 25 Mating Cycles - Sabre Series - 43375-1001

Looking for a trusty way to get power to your PCB? Trust this crimp terminal from Molex. It's designed to work with receptacle housings in the 44441 series (such as 363-9875) when you want to link 18 to 14AWG wires to your circuit board. The highly conductive brass body assures you of a reliable connection. Thanks to tin plating, you don't need to worry about rust and can count on long-term performance. The unit's 600V voltage rating and 18A current rating mean it's built to handle heavy-duty applications.

Features & Benefits

• Wide operating temperature range between -40°C and +105°C makes it safe to use in demanding conditions
• Comes in a pack of 50, so you'll have enough for lots of jobs

Applications

• Industrial lighting
• Switchgear systems
• Process and packaging industry

How much does this terminal weigh?

This unit weighs just 0.36g, so it puts next-to-no pressure on your circuit board.

Standards

UL E29179; UL1950; CSA LR19980

Molex Sabre Series

7.5mm pitch
Range of robust, single-row connectors, for high current applications up to 18A
System allowing wire-wire and wire-board connection
Suitable for 14 to 18 awg
Positive locking casings with audible click, to prevent accidental disconnection
Casings polarised to ensure correct mating
Contacts completely insulated within the casing

Datasheet

Line Drawing - 43375-1001
