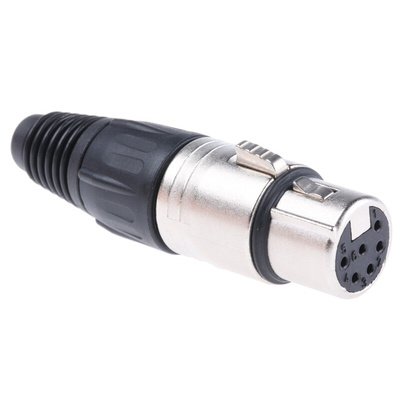

NC6FX, Neutrik Cable Mount XLR Connector, Female, 50 V, 6 Way, Silver over Nickel Plating, Разъем

Neutrik XLR Connector

The Neutrik X series female XLR connector has 6-pole with silver over Nickle-plating. It has a current rating of 7.5A with a voltage rating of 50V. It has a compact design with sturdy die-cast shell, fibreglass reinforced hard plastic insert and chuck type strain relief for secure clamping of all the cables. This product has dual-use terminals, which can either be soldered or crimped for increased choice and ease of connectivity.
Warning:
Not to be used as mains connectors.

Features and Benefits

Boot with rubber gland gives high protection against bending stresses
Coloured rings and boots available for coding and marking
Parts are polarised and securely fitted, thereby eliminating connector noise
Rugged zinc die cast shell makes it durable
Connector bodies is die-cast zinc/aluminium
Insertion force is ≤20N
Withdrawal force is ≤10N
Test voltage is 1500VAC
Contact resistance is ≤3mohm
Insulation resistance is ≥109ohm
Operating temperature ranging between -30°C and 80°C

Certifications

IEC 61076-2-103
IP40 rated
UL approved
UL 94 HB approved
