112-53060 PE530-PA66HSW-BK, HellermannTyton Cable Tie, 535mm x 9 mm, Black Polyamide 6.6 (PA66), Pk-100, Кабельные стяжки

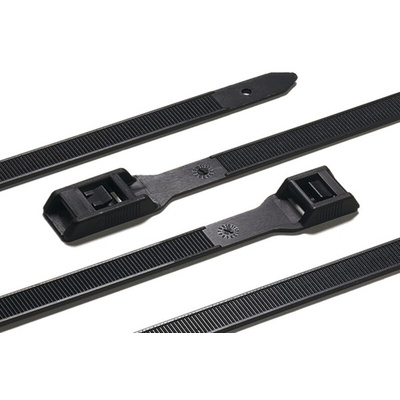

CSL series HellermannTyton cable ties with low profile head PE180

Designed primarily for use within the electrical supply industry these ties are particularly useful in areas with limited space, due to their low profile 'parallel entry' closure. The serration is on the outer face of the tie to avoid damage to cables.

Particularly suitable for outdoor use as they are manufactured from "UV" resistant polyamides. C SL series cable ties are made of Nylon 6.6. The Nylon 6.6 is frequently used when high mechanical strength, rigidity, good stability under heat and/or chemical resistance are required.
Cable ties are meeting EDF requirements (specification HN-33-S-62 of April 1997).

• Outside serrated cable tie with a smooth surface to bundle
• Low profile head for use in restricted area
• Parallel entry for enhanced fit around circular bundles
• Operating temperature from -40 °C to +105 °C, (+145 °C, 500 h)

Feature & Benefits

Approvals

EDF/HN-33-S-62

HellermannTyton Cable Tie, 535 (L) x 9mm (W), UV-Resistant, Black Colour - PE530 Series - 112-53060 PE530-PA66HSW-BK

Secure electrical wires in a flash with this cable tie from HellermannTyton. As it has a low-profile head, it slots easily into compact spaces. A parallel entry makes it a breeze to fit the tie around circular bundles. You can use it indoors and out thanks to a sturdy nylon 66 construction that makes it heat-stable and UV-resistant. It's strong, too, with a high tensile strength of 445N for use in demanding applications.

Features & Benefits

• Serrated outer edge to minimise damage to cable jackets
• Wide operating temperature from -40°C to +105°C for use in challenging conditions
• Halogen-free materials to prevent the risk of toxic fumes should it catch alight

Applications

• Solar and wind power
• Commercial lighting systems
• Construction sites

What is the largest bundle I can wrap this tie around?

This cable tie fits bundles up to a maximum diameter of 146mm.

Standards

68-27-608 CSL 530 (EDF)

Datasheet

Catalogue - Cable Ties & Fixings
