G3DZ SSR
These PCB mount MOSFET power relays have a maximum switching current of 0.6A and are suitable for switching full and half wave alternating currents.
SSR identical in size to the G6D series (stk no 512-9320 etc) with a max. ac/dc switching current of 0.6A
Suitable for switching full and half-wave alternating current
10μA maximum output leakage current
Output ON resistance: 2.4Ω
2500Vac dielectric strength between input and output
Input resistor and varistor incorporated
Single Phase connection line to neutral
See stk no 376-717 for a suitable PCB socket
Operating temperature range -30 to +85°C

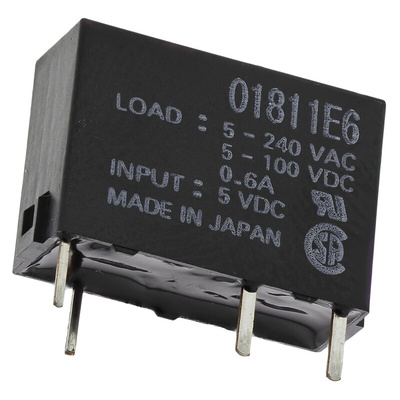

Omron G3DZ-2R6PL-DC5 MOFSET PCB Mount Power Solid State Relay.
The G3DZ solid State relay is the same size as the G6D with a 0.6 A maximum AC/DC current.
•Switching 0.6 A at 240 V ac or 100 V dc.
•10μA maximum current leakage (between open terminals).
•With an input resistor
•Overvoltage absorption circuit (AC/DC models only).
•Full and half wave rectified. AC current switchable.
•PCB Mount
•MOSFET
•With input resistance.
•Standard models available with UL and CSA certification.
•RoHS Compliant.
Features and Benefits of the MOSFET PCB Mount Solid State Relay.
•Isolation Photo-voltage coupler.
•No zero cross function.
•No indicators.
•Rated output load 0.6 A, 5 to 240 v ac, 5 to 100 V dc.
•Rated input voltage 5 V dc
•Operating voltage 4 to 6 V dc
•Must release voltage 1 V dc min.
•Impedance 830 Ω +20%
•Must operate voltage 4 V dc maximum.
•Rated load voltage 5 to 240 V ac, 5 to 100 V dc.
•Load voltage range 3 to 264 V ac, 3 to 125 V dc.
•Load current AC = 100 μ to 0.6 A, DC = 10 μ to 0.6 A.
•Inrush current 6 A (10 ms).
G3DZ-2R6PL-DC5 MOFSET PCB Mount Solid State Relay Added Features.
•Operate time 6 ms max.
•Release time 10 ms max.
•Output ON-resistance 2.4 Ω max.
•OFF State leakage 10 μ max (125 V dc), 100 μ max (200 V ac).
•Vibration resistance 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude).
•Shock resistance 1000 m/s².
•Weight 3.1 g approx.
Safety Notes.
•Do not clean or solder the PCB when the Solid State Relay is in the socket.
•Reverse surge voltage – If this is put on the input terminals insert a diode parallel to the input terminal. DO NOT impose a reversed voltage of more than 3 V.
•Terminal material has a high heat induction so any automatic or manual soldering should be achieved with 10 seconds at 260°C.
•Always when fitting a socket ensure it is matched correctly and insert pushing vertically (pressure straight down).
Suitable Isolation Socket.
•Part number P6D-04P. Stock number 376717.
Техническая спецификацияOmron Types of Solid State Relay
G3DZ Datasheet
