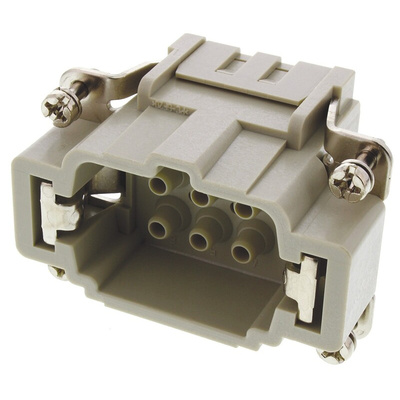

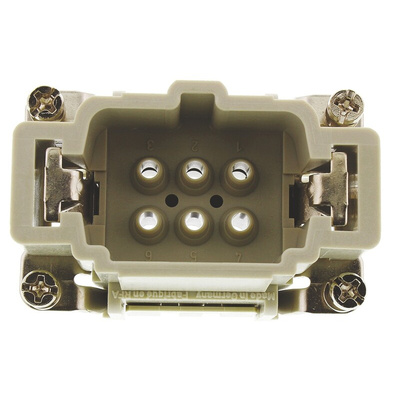

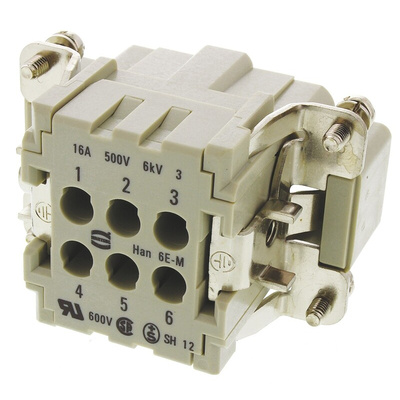

0933006260201, HARTING Han E Series size 16 A Connector Insert, Male, 6 Way, 16A, 500 V

3651819
Номер производителя: 0933006260201Производитель: HARTING
Цена за шт.
3075.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Han E® 16A Crimp Series

Harting contact inserts have a wide range of uses. Inserts are selected according to the desired number of poles and voltage and current ratings.

Current rating 16A
Working voltage 500V
6 to 24 poles
Crimp contacts must be ordered separately – option of 1.5mm² and 2.5mm²

Note

The parallel action crimp tool requires locator stock no. 114-7920

Warning

These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of a wrong connection.

Approvals

UL, CSA, SEV

Han E® 16A Crimp Series

These Han E® inserts are rated at 16A. They are intended for use with hoods and housings contained within ranges 5, 6, 7, & 8. These hood and housing ranges are associated to a specific Harting 'Size' number identifier. See the 'compatibility' table for details of this relationship, and stock numbers of hoods and housings that are typical of each range.

Техническая спецификация
pdfHan 6E / Han 6ES / Han 6ESS Technical Characteristics
pdfDimensional Drawing 09 33 006 2602 Male insert, Han 6 E
Код размера производителя:
16 A
Кол-во контактов:
6
Количество рядов:
2
Номинал тока:
16A
Номинальное напряжение:
500 В
Размер резьбы:
M3 x 10
Род:
Male
Серия:
Han E
Тип:
Connector Insert
Формат полюса:
6P+E
