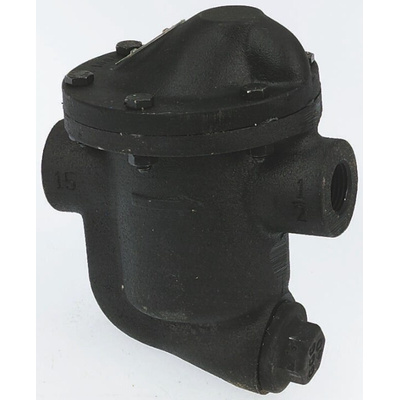

670200, Spirax Sarco 8.5 bar Iron Inverted Bucket Steam Trap, 1/2 in BSP Female, Конденсатоотводчик

Inverted Bucket Steam Trap HM Series

In-line connections screwed BSP
Simple and robust mechanism for long life
Suitable for superheat conditions when fitted with inlet check valve
Choice of valve mechanisms to match precise condensate load and pressure differentials
Deep water seal to protect against the possibility of steam loss
Inbuilt strainer
Maximum operating temperature 300°C

Iron Steam Traps

All units PN16 with Stainless Steel internal parts and Reinforced Exfoliated Graphite gaskets, Straight Orientation; Maximum Operating Pressure - 14bar g; Maximum Allowable Pressure - 16 bar g; Maximum Cold Hydraulic Test Pressure - 24bar g; Cover Bolts Material - BS 3692 Gr.10 Steel;

HM00 & HM10 Series Inverted Bucket Steam Trap - Data Sheet
