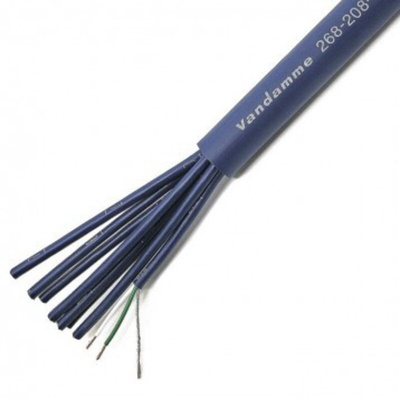

268-208-060, Van Damme Blue Multipair Installation Cable F/UTP 0.22 mm² CSA 12.2mm OD 24 AWG 250 V 50m, Кабель

Blue Series Studio Grade Analogue Multicore Cable

This analogue multicore cable is designed as a tough and flexible high purity oxygen free copper multicore cable for microphone and line level audio signals. It is ideally suited for studio installation use and inter-connection of professional audio equipment

Features and Benefits
• Each pair is shielded with aluminium polyester foil tape bonded to the pair jacket for stripping easily
• Pre-jacketed and numbered cores to reduce preparation and termination time
• 24 AWG conductors for reliable crimp terminations
• Conductor: 28x0.10mm (0.22mm²⁾ 24 AWG high purity OFC
• Polypropylene pair insulation
• Temperature range -25°C to +70°C
• DC Resistance <90Ω/km
• Capacitance <100pF/m core to core, <200pF/m core to screen

Applications:

• Audio multicore looms for 2-48 pairs
• Multipin breakout cables
• Static stage box systems - schools, colleges and places of worship
• Fixed installations in places not requiring LSZH cables
• Interconnects recording and post production equipment
• Wiring of B Guage and Bantam patchbays for individual screen requirements
• Flexible requirements includeprovison of industrial paired transmission

Approvals
