53111010+53119010, Lapp SKINTOP Series Grey Polyamide Cable Gland, M16 Thread, 4mm Min, 10mm Max, IP66, IP68, IP69, Кабельный ввод

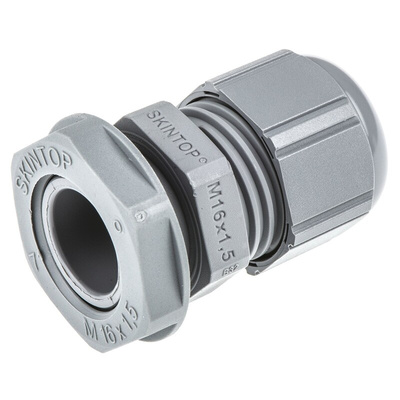

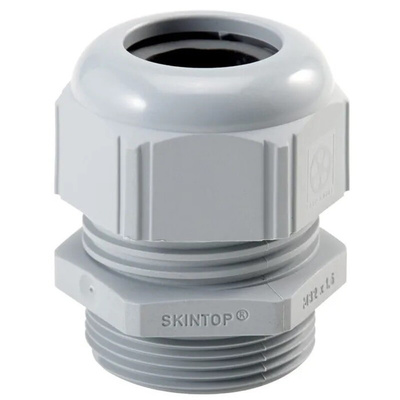

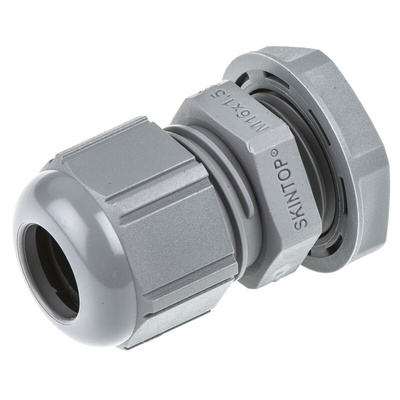

LAPP Polyamide Cable Gland With Locknut, M16, 10mm Maximum Cable Diameter - SKINTOP Series - 53111010+53119010

Choose this cable gland from LAPP to secure and protect wires in equipment panels and enclosures. It has a polyamide body that's durable and wear-resistant, so you can rely on it for long-term performance. This material is also UV (ultraviolet) stable, which means it won't deteriorate with sunlight exposure. The gland's cable diameter range of 4 to 10mm makes it suitable for smaller cable sizes. With a simple screw-on design and a locknut for extra security, this unit is easy to install and doesn't need complex tooling.

Features & Benefits

• Wide operating temperature range of -20°C to +100°C for safe industrial use
• IP69 (ingress protection) rating to withstand dust and high-temperature, high-pressure water jets
• Screw thread length of 8mm for a secure link to a panel or equipment enclosure

Applications

• Solar cells and panels
• Control and automation technology
• Machine and equipment manufacturing

What's meant by 'strain relief'?

Strain relief is support for electrical cables that prevents them from twisting and bending at angles that could damage them. As this cable gland offers built-in strain relief, you can rely on it to prolong your cable's lifespan.

VDE135320

UL E79903

Sept.03 Missing Table

LAPP_PRO998_Datasheet

LAPP_PRO976_Datasheet

Cable Gland Selection Chart

Catalogue - Main catalogue 2020 - 21
