53111030+53119030, Lapp SKINTOP Series Grey Polyamide Cable Gland, M25 Thread, 8mm Min, 17mm Max, IP66, IP68, IP69, Кабельный ввод

LAPP Cable Gland, M25 Thread, 8 to 17mm Cable Diameter - SKINTOP Series - 53111030+53119030

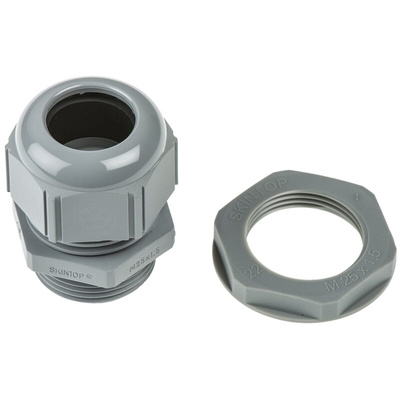

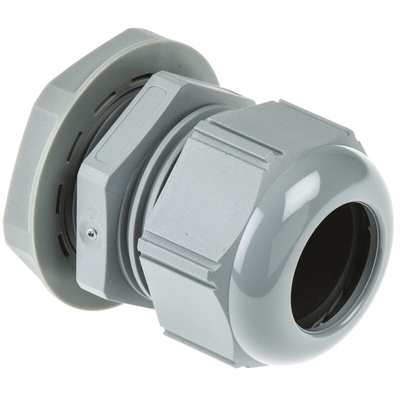

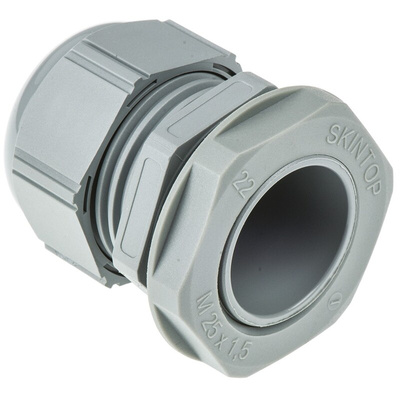

Attach this cable gland from LAPP to your electrical cable to protect its connection from twisting and rough handling. It includes a locknut so you can secure the gland into a borehole without needing a separate threaded connector. This unit provides strain relief for the connected cable, reduces stress at the plug termination point and helps to prevent cracking or fraying due to sharp bends.

Features & Benefits

• Robust PA (polyamide) housing material protects against impact and abrasion damage
• Operating temperature range between -20°C and +100°C for use in extreme industrial environments
• Clip termination style ensures the gland resists substantial industrial vibration

Applications

• Computer peripherals
• Banking systems
• Business intercoms
• Broadcasting equipment
• Security alarms

Is this cable gland protected against dust and moisture?

Yes, this cable gland has IP66, IP68 and IP69 (ingress protection) ratings. This means you can rely on it in demanding settings as it's fully dust-tight, protected against high-pressure water jets and able to withstand submersion in shallow water for short periods.

What's the length of the gland and its threads?

The gland has a compact overall length of 40mm and a 10mm thread length for easy compatibility with standard systems.

VDE135320

UL E79903

Sept.03 Missing Table

LAPP_PRO998_Datasheet

LAPP_PRO976_Datasheet

Cable Gland Selection Chart
