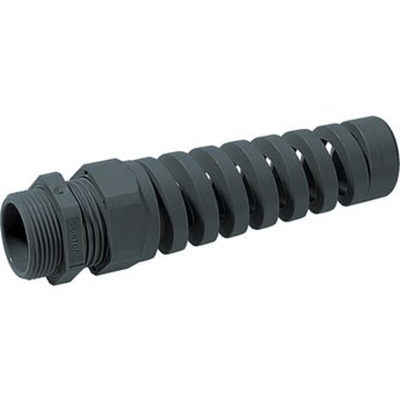

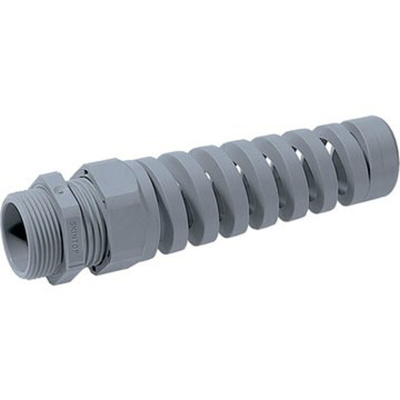

53111710+53119110, Lapp SKINTOP Series Black Polyamide Cable Gland, M16 Thread, 4.5mm Min, 10mm Max, IP68, Кабельный ввод

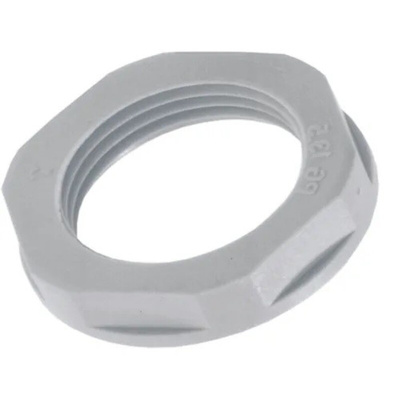

LAPP Polyamide Cable Gland With Locknut, M16, 10mm Maximum Cable Diameter - SKINTOP Series - 53111710+53119110

Make connections to your equipment secure with this cable gland from LAPP. It has a spiral construction that provides enhanced strain relief to prevent cables from bending at angles that may cause damage. The unit's polyamide material is durable and impact-resistant for long-lasting performance. It includes a locknut, so you can make a secure connection that isn't affected by vibration. With a screw-on thread, this cable gland is easy to install, saving time and effort. It can accommodate cables with diameters from 4.5mm to 10mm, making it a versatile protection solution.

Features & Benefits

• Wide operating temperature range of -20°C to +100°C for use in demanding conditions
• IP68 (ingress protection) rating to withstand dust and immersion in up to 1.5m of water for 30 minutes
• Chloroprene rubber (CR) seal to prevent dust and moisture from getting into the enclosure

Applications

• Robotics and industrial automation
• Moving machine parts
• Light and sound applications

Is this cable gland flame resistant?

This cable gland is flame-resistant and will stop the spread of fire within 60 seconds, to enhance workplace safety.

Standards

EN 50262

LAPP_PRO998_Datasheet

Datasheet

Cable Gland Selection Chart

Catalogue - Main catalogue 2020 - 21
