53111720+53119120, Lapp SKINTOP Series Black Polyamide Cable Gland, M20 Thread, 7mm Min, 13mm Max, IP68, Кабельный ввод

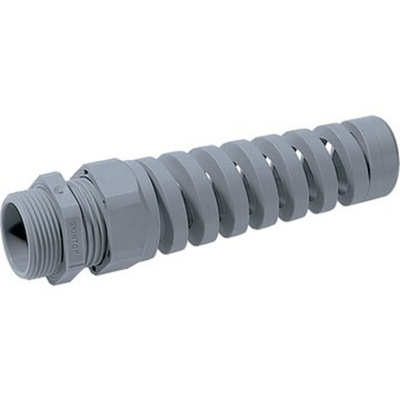

Lapp IP68 Metric Spiral Support Gland

From Lapp, this Spiral Support Gland is an ideal way to protect cable connections. With an integrated protective spiral, the gland provides extra strain relief and bend protection for the attached cable, meaning a higher resistance to wear and tear.

With a simple screw on action that reduces assembly time, the gland is a quick and easy way to provide a high level of environmental resistance. It also has a wide clamping range, to accommodate a variety of cable sizes.

Features and Benefits

• Integrated Spiral Support
• IP68 Protection
• Screw-On Assembly
• Optimum Strain Relief
• Chemcial Resistance
• Temperature Resistance
• Wide Clamping Range

Applications

Due to the dependable bending and anti-kink protection inherent to this cable gland, it is ideal for use with hand held and portable devices. Where ever a device is often moved, this spiral cable gland protects against stresses to the attached cable.

• Robotics Industry
• Light and Sound Applications
• Moving Machine Parts

Environment

The cable gland seals to IP68, which means it has a very high resistance to dust and particle ingress, and is water proof even in shallow submersion. This makes it ideal for powered devices in harsh industrial environments, and even for open air applications.

Supplied with

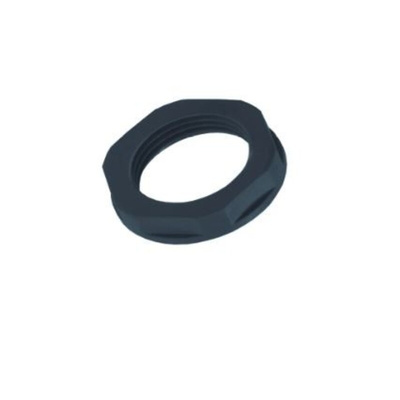

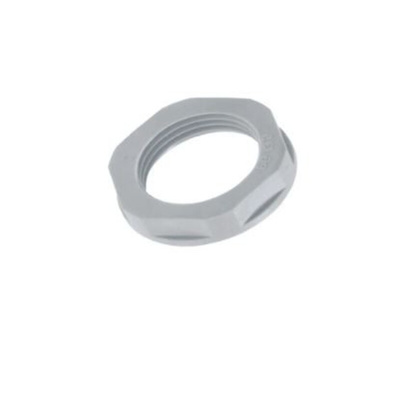

Lock nut

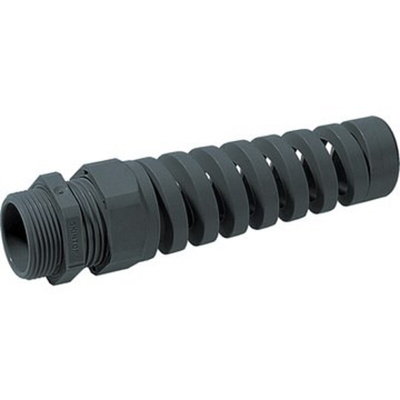

LAPP Cable Gland, Locknut Included, 27.6mm OD - SKINTOP Series - 53111720+53119120

Protect your electrical connections with this cable gland from LAPP. At one end, there's a screw fitting for easy attachment to your equipment. At the other end, there's a protective spiral that provides strain relief to cables, preventing wear and damage caused by bending. As it accommodates cable diameters from 6 to 13mm, this is a versatile option. It comes with a locknut to secure your connections against jostling. An IP68 rating indicates the gland is dust-tight and protected against water submersion, so you can rely on it in tough industrial conditions.

• Durable PA body for resistance to chemicals
• Standard M20 thread for easy compatibility
• Hexagonal locknut for simple installation with a spanner

Applications

• Packing plants
• Industrial robotics systems
• Manufacturing industry

Can I use this cable gland outdoors?

Yes, the unit's IP68 rating and UV-resistant body mean it's protected against harsh conditions, so you can use it outdoors.

Standards

EN 50262

LAPP_PRO998_Datasheet

Datasheet

Cable Gland Selection Chart
