53111730+53119130, Lapp SKINTOP Series Black Polyamide Cable Gland, M25 Thread, 9mm Min, 17mm Max, IP68, Кабельный ввод

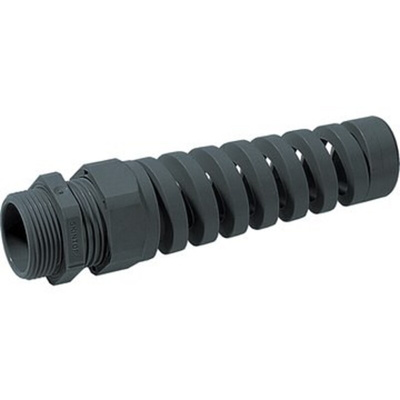

Lapp IP68 Metric Spiral Support Gland

From Lapp, this Spiral Support Gland is an ideal way to protect cable connections. With an integrated protective spiral, the gland provides extra strain relief and bend protection for the attached cable, meaning a higher resistance to wear and tear.

With a simple screw on action that reduces assembly time, the gland is a quick and easy way to provide a high level of environmental resistance. It also has a wide clamping range, to accommodate a variety of cable sizes.

Features and Benefits

• Integrated Spiral Support
• IP68 Protection
• Screw-On Assembly
• Optimum Strain Relief
• Chemcial Resistance
• Temperature Resistance
• Wide Clamping Range

Applications

Due to the dependable bending and anti-kink protection inherent to this cable gland, it is ideal for use with hand held and portable devices. Where ever a device is often moved, this spiral cable gland protects against stresses to the attached cable.

• Robotics Industry
• Light and Sound Applications
• Moving Machine Parts

Environment

The cable gland seals to IP68, which means it has a very high resistance to dust and particle ingress, and is water proof even in shallow submersion. This makes it ideal for powered devices in harsh industrial environments, and even for open air applications.

Supplied with

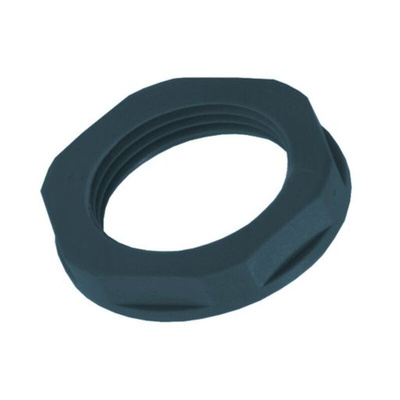

Lock nut

LAPP Cable Gland, Spiral Strain Relief, 9 to 17mm Clamping Range - SKINTOP Series - 53111730+53119130

Give your power cord the support it needs with this cable gland from LAPP. Its spiral construction provides strain relief for cords to prevent damage caused by bending, helping to extend their lifespan. Thanks to its PA construction, you can count on the component to stand strong against chemicals and oils. It also keeps its cool in harsh conditions, thanks to a wide operating temperature range between -20°C and +100°C.

Features & Benefits

• Flame-retardant to prevent the spread of flames in the event of a fire
• Adjustable clamping range between 9 and 17mm for versatility
• IP68 rating indicates it's dust-tight and protected against immersion in up to 1.5m of water for 30 minutes

Applications

• Robotics
• Water management
• Agricultural equipment
• Process control

Is this cable gland easy to install?

Yes, the fastener simply screws in place for assembly in a flash.

Standards

EN 50262

LAPP_PRO998_Datasheet

Datasheet

Cable Gland Selection Chart

Instruction Sheet - 53111730
