843.400.55, Werma KombiSIGN 70 Series Clear Steady Effect Beacon Unit, 24 V, LED Bulb, AC, DC, IP54

3659936
Номер производителя: 843.400.55Производитель: Werma
Цена за шт.
34308.30 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Stacking Signal Tower - KombiSIGN 70, 70mm, IP54

The WERMA KombiSIGN 70 modular stacking signal tower is an ideal solution to the increasing requirement for safety, machine productivity and reduced downtime. The modular design of these stacking towers enables quick and easy installation. Each KombiSIGN module is equipped with a bayonet fixing with integral contact system. Simply align the corresponding white marks and gently twist to lock them in place.

Features and Benefits

• Suitable for machine and manual Andon indication
• Modular system allows a completely free combination of optical and audible signal elements
• Mechanical and electrical connection of the elements in the space of seconds using a bayonet connection system
• Completely safe element changes (contact-voltage proof) without the need for tools
• Protection rating IP54 for use in normal conditions
• Up to 5 elements can be mounted on a terminal base
• Flexible combination of optical and audible elements
• Optical isolation due to O-ring seal stopping illumination of adjacent element
• Operating voltage for the continuous incandescent element is dependant on bulb fitted
• LED EVS elements have an extremely bright, random sequence of light to immediately grab attention
• Ultra-bright elements are up to 20 times brighter than conventional LED beacons. Intelligent electronics ensure operation at maximum brightness
• Vocal element plays customer specific audio files in mp3 format (sounds, alarms, music or spoken word)
• Operating temperature range is -20 to +50 °C
• Polyamide body with polycarbonate lenses, 70 mm diameter

Permanent Multi-colour LED Light Element

• Seven colours in one beacon
• Different colours can be triggered via the pins in the terminal element
• Positive and negative control logic
• The three basic colours (red/yellow/green) can be triggered using only two PLC outputs
• High light intensity

Note

Lamps are not supplied and must be purchased separately. Not compatible with KombiSIGN 71.

Approvals

UL listed, CSA, VDE

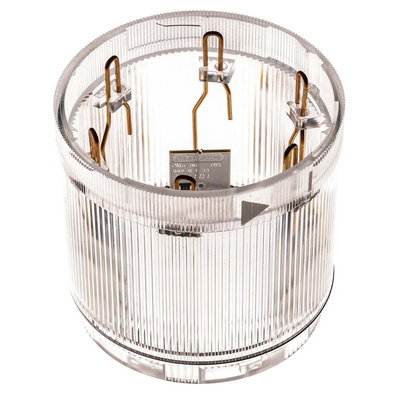

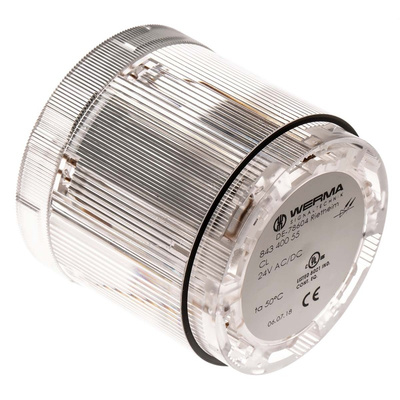

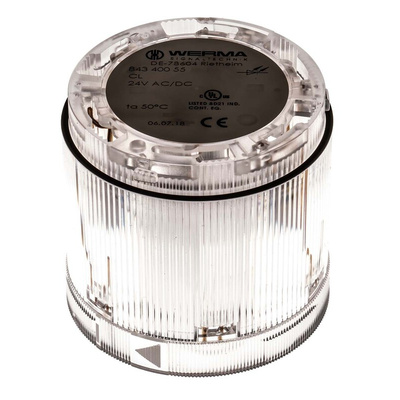

WERMA Clear LED Beacon Unit, 24V DC - KombiSIGN 70 Series - 843.400.55

Need to enable your workforce to react promptly to faults and rectify problems quickly? Choose this clear beacon unit from WERMA. It's suitable for use with machinery, manual workstations and for access control, enhancing safety and security while reducing operator response times. An LED (light-emitting diode) bulb makes the beacon a cost-effective and environmentally-friendly option, as LEDs are long-lasting and energy-efficient. You can control this beacon using a wireless-based system that lets you monitor multiple units via one device.

Features and Benefits

• Tough and durable polyamide (PA) housing that won't break easily
• High light intensity for an easy-to-see visual warning
• IP54 (ingress protection) rating means the beacon is protected from dust and water splashes
• Mount up to five beacon lights on the same terminal base to save on space
• Wide operating temperature range of -20°C to +50°C, so you can use it in harsh environments

Applications

• Industrial automation
• Robotics
• Marine and offshore environments
• Rail and transport industries

How do you mount this beacon?

This unit is equipped with a user-friendly bayonet fixing and integral contact system. Simply align the corresponding white marks on its housing and gently twist to lock them in place.

Техническая спецификация
pdfUL E164155
pdfCSA LR108291-1
pdfMachine Guarding and Safety Range Overview
pdfDatasheet
pdfInstruction Sheet - 843.400.55
Высота:
66мм
Диаметр основания:
70мм
Диапазон:
KombiSIGN 70
Лампа - тип:
Светодиодная
Максимальная температура:
+50°C
Минимальная температура:
-20°C
Напряжение питания:
24 В
Световые эффекты:
Стабилизация
Серия:
KombiSIGN 70
Степень защиты IP:
IP54
Тип компонента:
Beacon
Тип тока:
Переменный ток, Постоянный ток
Цвет корпуса:
Черный
Цвет линзы:
Светлый
