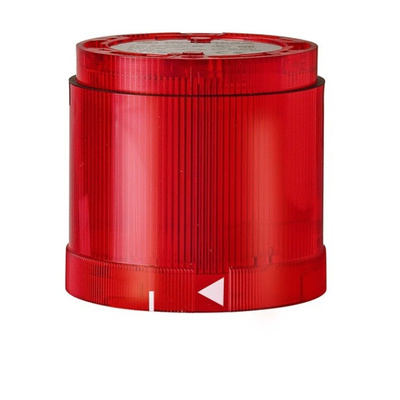

843.100.68, Werma 843 Series Red Steady Effect Beacon Unit, 230 V ac, LED Bulb, AC, IP54

Stacking Signal Tower - KombiSIGN 70, 70mm, IP54

The WERMA KombiSIGN 70 modular stacking signal tower is an ideal solution to the increasing requirement for safety, machine productivity and reduced downtime. The modular design of these stacking towers enables quick and easy installation. Each KombiSIGN module is equipped with a bayonet fixing with integral contact system. Simply align the corresponding white marks and gently twist to lock them in place.

Features and Benefits

• Suitable for machine and manual Andon indication
• Modular system allows a completely free combination of optical and audible signal elements
• Mechanical and electrical connection of the elements in the space of seconds using a bayonet connection system
• Completely safe element changes (contact-voltage proof) without the need for tools
• Protection rating IP54 for use in normal conditions
• Up to 5 elements can be mounted on a terminal base
• Flexible combination of optical and audible elements
• Optical isolation due to O-ring seal stopping illumination of adjacent element
• Operating voltage for the continuous incandescent element is dependant on bulb fitted
• LED EVS elements have an extremely bright, random sequence of light to immediately grab attention
• Ultra-bright elements are up to 20 times brighter than conventional LED beacons. Intelligent electronics ensure operation at maximum brightness
• Vocal element plays customer specific audio files in mp3 format (sounds, alarms, music or spoken word)
• Operating temperature range is -20 to +50 °C
• Polyamide body with polycarbonate lenses, 70 mm diameter

Permanent Multi-colour LED Light Element

• Seven colours in one beacon
• Different colours can be triggered via the pins in the terminal element
• Positive and negative control logic
• The three basic colours (red/yellow/green) can be triggered using only two PLC outputs
• High light intensity

Note

Lamps are not supplied and must be purchased separately. Not compatible with KombiSIGN 71.

Approvals

UL listed, CSA, VDE

WERMA Beacon Unit, 66mm Height, 50Hz Operating Frequency - KombiSIGN 70 Series - 843.100.68

Looking for a signalling solution that catches the eye? Go for this beacon unit from WERMA. Its steady red LED serves to warn of a potential machine hazard and can also operate as a 'stop' signal. Thanks to its PC construction, this piece of kit stands up to impact to handle the rigours of harsh industrial environments. Its bayonet fixing system eliminates the need for installation tools, saving time and hassle.

Features & Benefits

• Optical service life of 100,000 hours assures you of long-term performance
• Compact dimensions of 66 (H) x 70mm (diameter) for space-efficient installation in tight setups
• IP54 rating shows it resists limited amounts of dust and is protected from water sprays

Applications

• Automotive manufacturing
• Material handling equipment
• Transportation systems

How much current does this beacon consume during operation?

This unit needs only 20mA of current to work, making it energy-efficient and cost-effective.

UL E164155

CSA LR108291-1
