843.300.68, Werma 843 Series Yellow Steady Effect Beacon Unit, 230 V ac, LED Bulb, AC, IP54

Stacking Signal Tower - KombiSIGN 70, 70mm, IP54

The WERMA KombiSIGN 70 modular stacking signal tower is an ideal solution to the increasing requirement for safety, machine productivity and reduced downtime. The modular design of these stacking towers enables quick and easy installation. Each KombiSIGN module is equipped with a bayonet fixing with integral contact system. Simply align the corresponding white marks and gently twist to lock them in place.

Features and Benefits

• Suitable for machine and manual Andon indication
• Modular system allows a completely free combination of optical and audible signal elements
• Mechanical and electrical connection of the elements in the space of seconds using a bayonet connection system
• Completely safe element changes (contact-voltage proof) without the need for tools
• Protection rating IP54 for use in normal conditions
• Up to 5 elements can be mounted on a terminal base
• Flexible combination of optical and audible elements
• Optical isolation due to O-ring seal stopping illumination of adjacent element
• Operating voltage for the continuous incandescent element is dependant on bulb fitted
• LED EVS elements have an extremely bright, random sequence of light to immediately grab attention
• Ultra-bright elements are up to 20 times brighter than conventional LED beacons. Intelligent electronics ensure operation at maximum brightness
• Vocal element plays customer specific audio files in mp3 format (sounds, alarms, music or spoken word)
• Operating temperature range is -20 to +50 °C
• Polyamide body with polycarbonate lenses, 70 mm diameter

Permanent Multi-colour LED Light Element

• Seven colours in one beacon
• Different colours can be triggered via the pins in the terminal element
• Positive and negative control logic
• The three basic colours (red/yellow/green) can be triggered using only two PLC outputs
• High light intensity

Note

Lamps are not supplied and must be purchased separately. Not compatible with KombiSIGN 71.

Approvals

UL listed, CSA, VDE

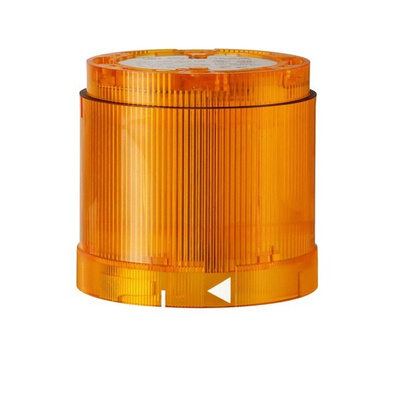

WERMA Beacon Unit, Signal Tower Component, Yellow Lens Colour - KombiSIGN 70 Series - 843.300.68

Indicate the operating status of your equipment using this beacon unit from WERMA. It emits a steady yellow light to let your personnel know a machine's condition. This unit fits together with other light elements in the KombiSIGN 70 range, so you can create a custom signal tower. Thanks to a wide operating temperature range of -20°C to +50°C, this component holds its own in harsh conditions.

Features & Benefits

• IP54 rating indicates it's protected against limited amounts of dust and water spray
• Long-lasting performance, thanks to an optical service life of up to 100,000h
• PC lens is resistant to UV light for safe outdoor use

Applications

• Oil and gas industry
• Railways
• Construction sites

How do I fix this beacon to my signal tower?

To fix this unit to your tower, attach the integral contact of the bayonet fixing to another beacon, then twist and lock it in place.

UL E164155

CSA LR108291-1
