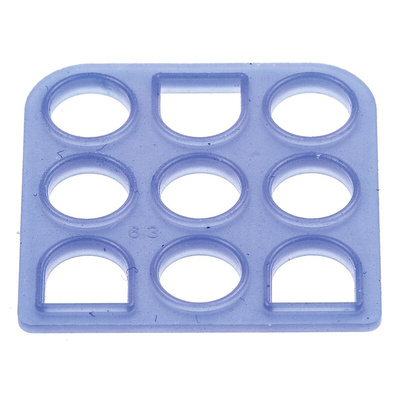

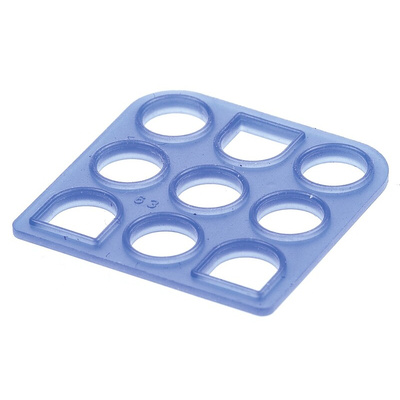

794277-1, TE Connectivity 9 Way MATE-N-LOK Series Blue Interface Seal for MATE-N-LOK Connectors

3661901
Номер производителя: 794277-1 Производитель: TE Connectivity
Цена за шт. (норма упаковки 10 шт)
180.42 руб. *

Срок поставки: 3-5 недель

+

* Цена с НДС справочная. Возможно ее увеличение на стоимость доставки по России и сертификации.

TE Connectivity Universal Mate-N-Lok Connector Interface Seals

TE Connectivity Universal Mate-N-Lok splashproof connector interface seals for use with Universal Mate-N-Lok sealed connectors to create a splash proof/immersion proof connection when mating two free hanging connectors. These Universal Mate-N-Lok interface seals are made from silicone rubber and are to be used in conjunction with TE Connectivity Universal Mate-N-Lok wire seals (see stock number 366-1945 typically), one interface seal and two wire seals are required per mated assembly.
Stock number 366-1850 is a 2 way interface seal
Stock number 366-1872 is a 3 way interface seal
Stock number 366-1888 is a 4 way interface seal
Stock number 680-2111 is a 6 way interface seal
Stock number 366-1901 is a 9 way interface seal
Stock number 680-2118 is a 12 way interface seal
Stock number 366-1939 is a 15 way interface seal
Stock number 720-2143 is a 3 way low mating force interface seal which deson't meet IP 5/6 or IP 5/7 requirements
Stock number 811-7027 is a 4 way interface seal for use with Mate-N-Lok II housings

Material: blue silicone rubber
Impermeability:
IP 56 insulation Ø: 1.5 to 2.8 mm
IP 57 insulation Ø: 2.8 to 3.3 mm
TE Connectivity Universal MATE-N-LOK™ Range

Fully polarised plug/receptacle couplings
Housings positively lock together
Pin and socket contacts intermixable in the same housing
Safe handling of mated and unmated connectors
Wide range of sizes and wire acceptance
Quality ratchet operated comfort grip crimp tooling available
6.35mm (0.25in.) pitch
To convert to IP Splashproof rating, order sealing accessories see typically stock no. 366-1901

Universal power coupling and power to board connectors feature established reliability and ruggedness for many industrial applications.
Recommended panel thickness 0.76 to 2.28

Current rating (A) max:
Free plugs/receptacles 15
PCB headers 12
Voltage rating (Vac/dc) 600
Dielectric withstand voltage (kV) 5
Between circuits (kV) 10
Insulation resistance (MΩ) 1000
Contact resistance (mΩ) max 3.5
Temp. range (°C) -55 → +105
Mating cycles 50
Insulation material UL94V-2 Natural polyamide
Insulation material UL94V-0 White opaque Nylon 6.6
Contact material Brass, tin plated
Contact material (vertical header) Phosphor bronze, Tin plated

Техническая спецификация
pdfDatasheet
pdfDatasheet
pdfInstruction Sheet

Кол-во контактов:
9
Материал:
Силиконовая резина
Серия:
MATE-N-LOK
Тип:
Interface Seal
Тип коннектора:
MATE-N-LOK
Цвет:
Голубой
Чертеж САПР:
3D CAD Model
