440E-A13081, Allen Bradley Guardmaster Rope Pull Switch Cable, 15m

Allen Bradley Guardmaster 440E-A13081 Lifeline Rope Tensioner System (LRTS)

Enjoy fast, effortless set-up for your 440E cable pull emergency stop system with the 440E-A13081 Installation Kit by Allen Bradley Guardmaster.

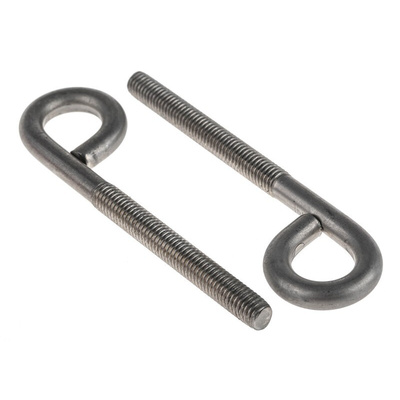

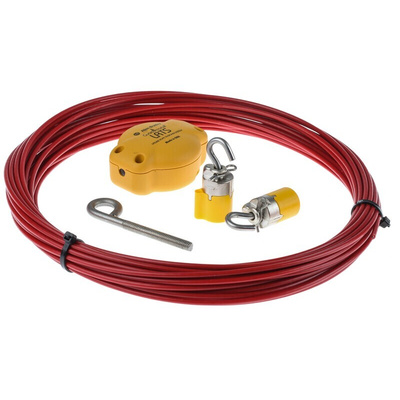

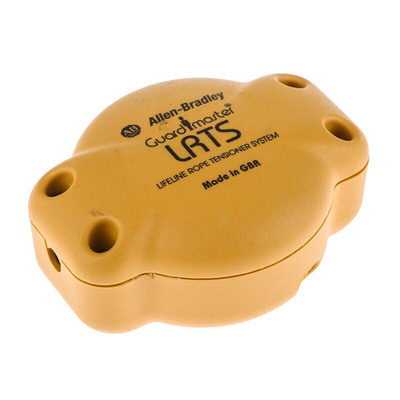

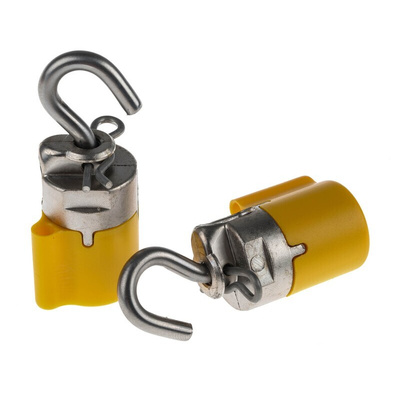

The 440E-A13081 Rope Tensioning System Installation Kit, 15m (49.2 ft), is specifically designed for use with the 440E Lifelife Rope Pull Switch. This handy kit is supplied with 1 tensioner, 2 grippers, rope, eye bolts and hexagon keys.

The Lifeline Rope Tensioning System (LRTS) is a unique and efficient cable tensioning safety system which is made to ensure quick and simple set-up of rope actuated systems, saving you valuable time.

440E Switches: The Allen Bradley Guardmaster 440E Rope Pull Switches have a steel wire rope which is connected to latching pull switches, so that when the rope is pulled in any direction along the length the switch is instantly tripped to stop the moving apparatus, minimising risk of injury and risk of damage to equipment.

Features and Benefits:

• 15m wire
• 500N tensioner holding force
• Cable tidy incorporated into cable grips, which allow quick thread and grip of wire
• No specialist tools required – easy installation
• Wire adjustment up to 300mm
• Tensioning is simple via the setting bolt with the use of an Allen key
• Time saving – Can be installed and commissioned in approximately 3 minutes
• Helps to implement a simple and effective emergency stop rope pull system but can be used for other applications

Certifications: IP30 rated

Note: Stock no. 873-2171 is a tensioner and hexagon key only.

What is a cable pull switch?

A cable pull switch, also known as grab wire switches or rope pull switches, are a common type of emergency stop and safeguarding measure. They allow personnel to stop moving machinery anywhere along its length instead of at just one point on the apparatus and can be used over a long distance. This is useful if there is a chance that someone may become entangled in lengthy moving machinery, such as conveyor belts. These appliances are hung by a wire around the machinery and can be operated by pulling the cord. This isolates the circuit and stops the hazard.
