440E-A13083, Allen Bradley Guardmaster Rope Pull Switch Cable

Allen Bradley Guardmaster 440E-A13083 Lifeline Rope Tensioner System (LRTS)

Reduce set-up time for your 440E cable pull emergency stop system with the 440E-A13083 Installation Kit by Allen Bradley Guardmaster.

Designed for use with the 440E Lifelife Rope Pull Switch, the 440E-A13083 pack is a 30m (98.4 ft) Rope Tensioning System Installation Kit. The Lifeline Rope Tensioning System (LRTS) is a unique cable tensioning safety system which enables effortless, fast, and efficient set-up of rope actuated systems.

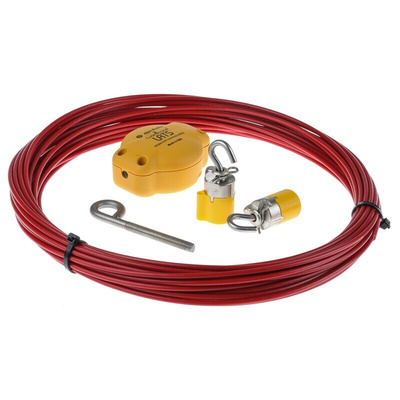

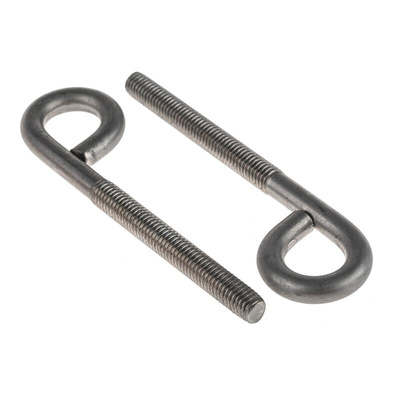

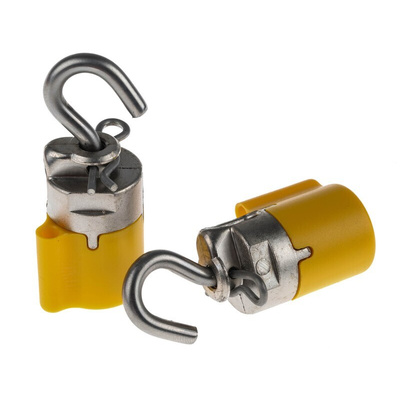

This helpful kit is supplied with 1 tensioner, 2 grippers, rope, eye bolts and hexagon keys.

440E Switches: The Allen Bradley Guardmaster 440E Rope Pull Switches have a steel wire rope which is connected to latching pull switches, so that when the rope is pulled in any direction along the length the switch is instantly tripped to stop the moving apparatus, minimising risk of injury and risk of damage to equipment.

Features and Benefits:

• 30m wire
• No specialist tools required – easy installation
• 500N tensioner holding force
• Wire adjustment up to 300mm
• Time saving – Can be installed and commissioned in approximately 3 minutes
• Cable tidy incorporated into cable grips, which allow quick thread and grip of wire
• Tensioning is simple via use of an Allen key
• Helps to implement a simple and effective emergency stop rope pull system but can be used for other applications

Certifications: IP30 rated

Note: Stock no. 873-2171 is a tensioner and hexagon key only.

What is a cable pull switch?

A cable pull switch, also known as grab wire switches or rope pull switches, are a common type of emergency stop and safeguarding measure. They allow personnel to stop moving machinery anywhere along its length instead of at just one point on the apparatus and can be used over a long distance. This is useful if there is a chance that someone may become entangled in lengthy moving machinery, such as conveyor belts. These appliances are hung by a wire around the machinery and can be operated by pulling the cord. This isolates the circuit and stops the hazard.
