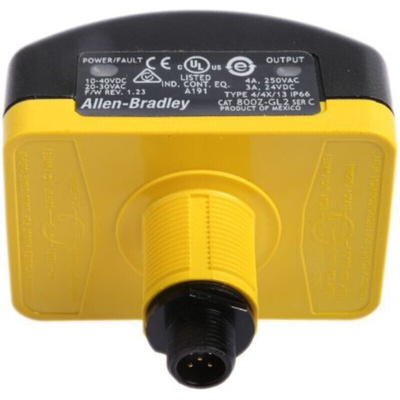

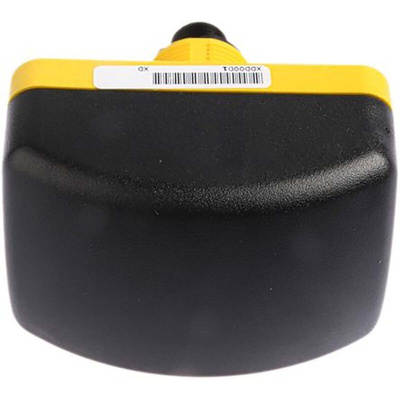

800Z-GL2Q5, Allen Bradley Zero-Force 800Z Touch Button, Momentary, 1, NO/NC, IP66, Выключатель

3668980
Номер производителя: 800Z-GL2Q5Производитель: Allen Bradley
Цена за шт.
107337.00 руб. (С НДС) *

Срок поставки: 7-9 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Zero Force Touch Buttons

Black polysulfone (VALOX 357) thermoplastic housing
Suitable for single or two hand control applications
Fits 22.5mm hole
Prewired or five-pin micro quick disconnect connector versions available
Reduces the risk of repetitive strain injuries

Ergonomic design for simple and easy operation
CE Marked
IP66 ingress protection
1200 psi hose down capability
A 30.5mm to 22.5mm hole adaptor is available separately

Approvals

UL/ UL listed for Canada

Allen Bradley Touch Button

The Allen Bradley 800Z series touch button is designed for machine control systems that require the use of both the hands. It has an interlinked sensor surface that weaves two capacitive sensors in offset planes for superior product sensitivity. The output can be initiated by touching the surface of the switch. This button can detect hand through most industrial gloves. The contour of this touch button easily conforms to the shape of the hand while helping prevent defeatability when two-hand control is needed.
The relay has a 5 pin QD output with a contact rating of 2.5A at 24VDC.

Features and Benefits

• 1NO/NC contact configuration
• Black polysulfone thermoplastic housing
• Suitable for single or two-hand control applications
• Fits a 22.5mm hole
• Prewired or 5-pin micro quick disconnect connector versions available
• Reduces the risk of repetitive strain injuries
• Ergonomic design for simple and easy operation
• Hose down capability is 1200psi
• Has 30.5mm to 22.5mm hole adaptor is available separately

Certifications

• CSA certified
• CE certified
• EN50081-2
• EN60204-1
• EN60954-1
• EN61000-6-2
• EN/IEC 60947-5-1
• UL 508 approved
• C-TICK certified
• IP66 rated

Zero Force & Opto Touch Switches

Actuated by sensors using patented Field Effect Technology which converts the touch of the operators hand into an electrical output. The two sensors have to be touched within 0.2 seconds of each other and can differentiate between a person's hand and most solid objects/substances, as well as resistance to accidental actuation via clothing, fluid, splashes etc.,There are built in diagnostic safeguards for power-up protection, foreign object intervention and film/deposit interference which all result in LED indication.

Техническая спецификация
pdfZero-Force Touch Buttons - Data Sheet
pdfMachine Guarding and Safety Range Overview
Глубина:
48.3мм
Диапазон:
Zero-Force
Длина:
69.9мм
Кнопочное управление:
Моментальный
Количество кнопок:
1
Конфигурация контактов:
NO/NC
Материал корпуса:
PBT, PC
Напряжение питания:
10 → 40 В пост. тока, 20 → 30 v перем. тока
Размеры:
69.9 x 40.9 x 48.3 мм
Серия:
800Z
Степень защиты IP:
IP66
Тип монтажа:
Заподлицо монтаж
Ток питания:
100 мА
Ширина:
40.9мм
