VP5010BJ411H00, Norgren 3/2 Pneumatic Solenoid Valve - Pilot/Spring G 1/4 VP50 Series 24V dc, Клапан

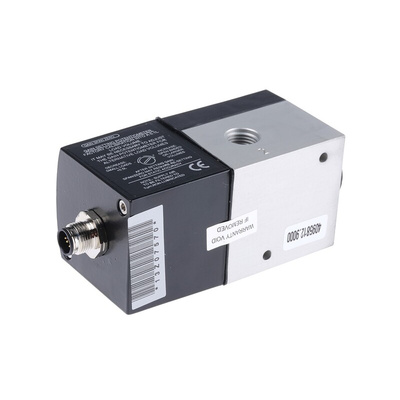

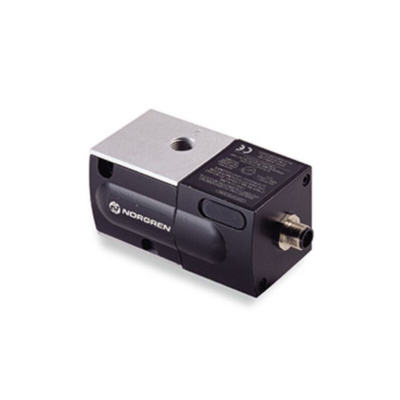

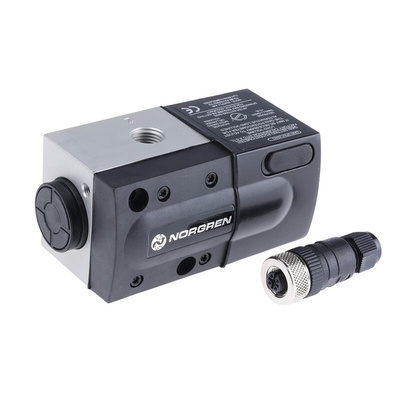

IMI Norgren Pneumatic Solenoid Valve, Aluminium Body, 2 to 14 Bar Operating Pressure Range - VP50 Series - VP5010BJ411H00

Let your system steam ahead with this pneumatic solenoid valve from IMI Norgren. Featuring 3-way proportional pressure control valves, it's designed to be used with industrial applications that need fast response times and high flow rates of up to 1400Nl/min. When an electrical current is sent to the fitted solenoid, the valve is opened precisely and efficiently. Settings are fully adjustable to suit your specific needs and manifold mounting compatibility takes the pressure off the job of installation.

Features & Benefits

• Operating temperature range of 0°C to +50°C makes it suitable for industrial use
• IP65-rated for comprehensive protection from dust and water jets
• Pilot spool valve uses air pressure to control operation, saving energy and labour
• 3/2 port suitable for blow-off and pressure release

Applications

• Factory automation
• Breweries
• Industrial process control

Can this valve be used to control and maintain flow rates automatically?

Yes, it can. It uses a proportional feedback signal – the difference between the desired and measured rates – to adjust output pressure as needed.
