VP5006BJ111H00, Norgren 3/2 Pneumatic Solenoid Valve - Pilot/Spring G 1/4 VP50 Series 24V dc, Клапан

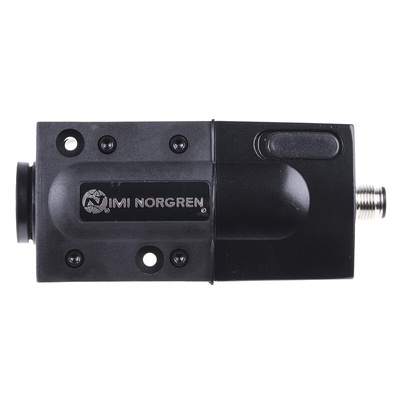

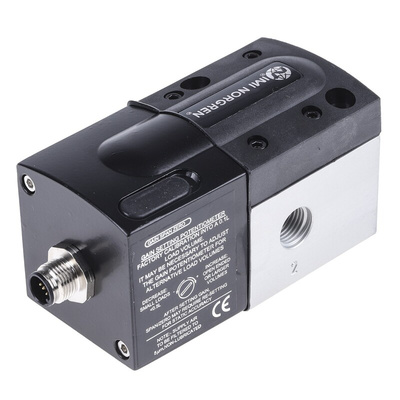

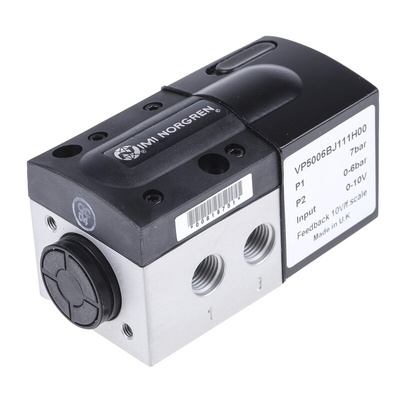

Norgren Proportional Pressure Control Valve - VP5006BJ111H00

Control air flow efficiently in your pneumatic system with this VP50 series closed-loop air piloted proportional pressure control valve from Norgren.

This valve has a 1/4in. G port connection and can handle a flow rate of 1400NL/min. The output pressure range is 0bar to 6bar. It also has 3/2 ports and the supply voltage is 0V and 10V. It can be operated in temperatures of 0°C to +50°C. You can use this control valve in a pneumatic system with compressed dry air, oil free filtered to 5μm. It has an aluminium body which offers resistance to corrosion and impacts, making it a durable choice.

Features and Benefits:

• Energy efficient due to low power consumption
• Quick response time
• Can be mounted via manifold for easy installation and organisation
• Fully adjustable to a wide range of applications to suit your needs
• Proportional feedback signal of output pressure

Where can I use this solenoid valve?

This VP50 three-way closed loop proportional valve is perfectly suited for general purpose industrial pressure control applications which require high flow and fast response times.

Certifications:

EN50081-2 (1994) and EN50082-2 (1995) electromagnetic compatibility
IP65 rated (Ingress Protection)

Datasheet

IMI Norgren Proportional Technology Brochure
