SY5160-5LOU-C8-Q, SMC 5/2 Pneumatic Solenoid Valve - Solenoid/Pilot SY5000 Series 24V dc, Клапан

SMC Solenoid Valve

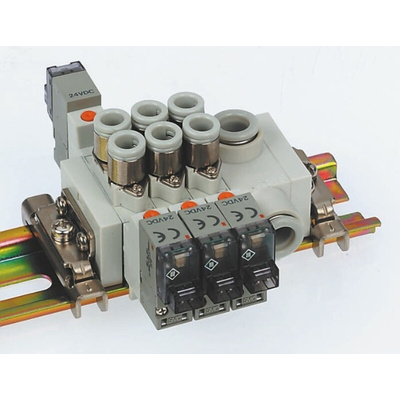

The SMC SY5000 series 5/2 ports solenoid valve has a supply voltage of 24VDC. This valve has an 8mm port connection and 2-position single type actuation. It has low power consumption and therefore decreased engineering costs. This valve can be configured easily and expandable valve system with standard DIN rail mount. The valve cover also uses die-cast aluminium which makes it stronger. This valve is available with 300mm lead wire without connector.
Note:
'L' type connector must be ordered separately
SMC SY Z series:
A range of modular DIN rail mounted solenoid-operated valves and accessories for pneumatic circuits. All the valves operate using compressed filtered air (lubricated or non-lubricated) and have an operating temperature ranging between -10°C and 50°C.

Features and Benefits

Solenoid power consumption is 0.4W
Maximum flow rate is 520NL/min
Operating pressure ranges between 0.15MPa and 0.7MPa
Operating temperature ranges between -10°C and 50°C
Solenoid valves are extremely compact and offer high flow rates
Supplied with surge voltage suppressors (non-polar type)

Certifications

IP65 rated
CE certified

Datasheet

Contains SVHC - Bis(2-ethylhexyl)phthalate (DEHP) - CAS No. 117-81-7

Contains SVHC - Benzyl butyl phthalate (BBP) - CAS No. 85-68-7
