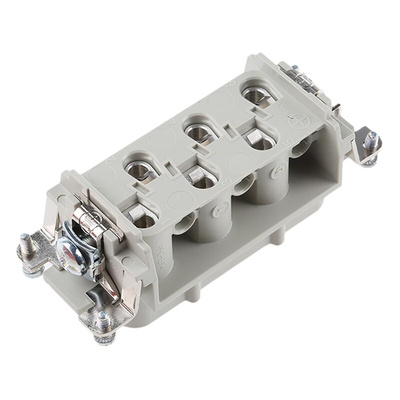

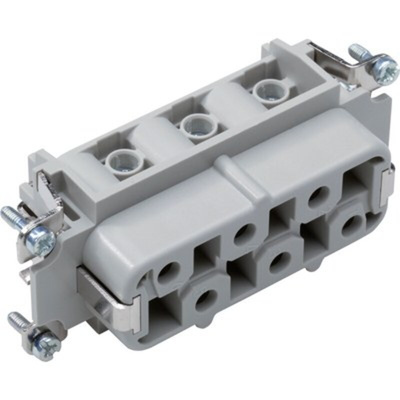

10171000, Epic Contact Heavy Duty Power Connector Insert, 35A, Female, H-BS Series, 6 Contacts

LAPP Heavy-Duty Power Connector Insert, 2 Rows, 6 Contacts - EPIC Series - 10171000

Step up your power connector's performance with this heavy-duty insert from LAPP. It has six contacts across two rows, so it's space-efficient and able to carry multi-signal transmissions through your system. You can count on steady power and data transfers thanks to the copper alloy conductor material. As the insert works at its best in an operating temperature range between -40°C and +100°C, you can rest assured that it handles the demands of harsh environments.

Features & Benefits

• Silver contact plating for resistance to corrosion
• Screw-down termination method achieves a secure hold on the cable
• Thermoplastic resin body delivers thermal resistance

Applications

• Transport industry
• Robotics systems
• Packaging plants
• Communications equipment

How durable is this insert?

As this insert has 100 mating cycles, you can plug and unplug it multiple times with minimal risk of mechanical wear.

Approvals

UL listed; CSA certified

HBS Range

Assembled connectors are type tested to 35A, 440Vac. Features are as listed for 440Vac 16A Group C connectors but with cable acceptance up to 6.0mm² wires by screw termination.

CSA 53004

EPIC Rechtecksteckverbinder / Rectangular Connectors / Connectuer Rectangulaire - General Specifications

EPIC H-BS Kontakteinsätze / Contact Inserts / Inserts le Contact
