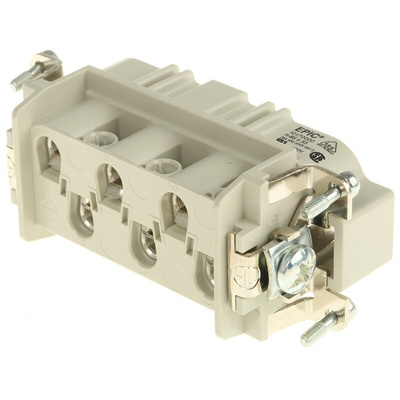

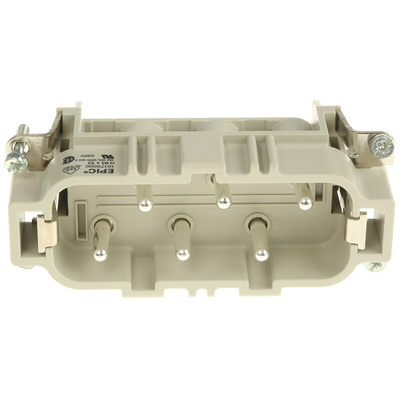

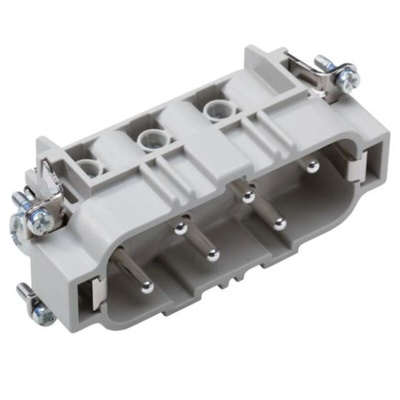

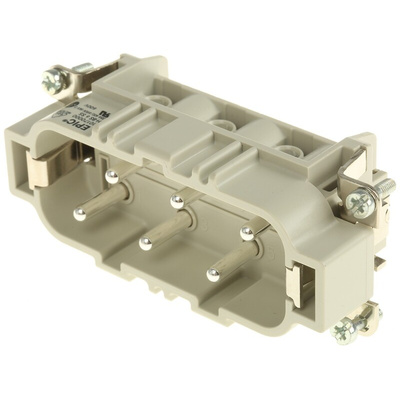

10170000, Epic Contact Heavy Duty Power Connector Insert, 35A, Male, H-BS Series, 6 Contacts

H-BS Inserts

H-BS 6 way inserts fit in H-BE 16 hoods and housings
H-BS 12 way inserts fit in H-BE 32 hoods and housings
12 way version needs 6 way (1-6 pin) + 12 way (7-12 pin ) inserts
For hoods and housings see typically stock no. 448-727
Thermoplastic resin body

Approvals

UL recognised component; CSA cerfified

LAPP Heavy Duty Power Connector Insert, Silver-Plated Copper Alloy Contacts, 6mm² Maximum Cross Section - EPIC Series - 10170000

Looking to create a robust connector setup for demanding factory or railway-based tasks? Try this heavy-duty power connector insert module from LAPP. Combine it with housing and levers from LAPP's HB-S range to provide power and data signals for your industrial automation and control applications. Its maximum rated current of 35A means it's practical when you need a durable component that safely withstands high current loads. Thanks to an impulse voltage rating of 6kV, you can rest assured you're protected from electric shocks even in case of significant surges.

• Operating temperature range of -40°C to +100°C for compatibility with harsh settings
• Simple screw termination lets you secure wires with cross-sections up to 6mm²

Applications

• Drive systems
• Plant engineering
• Control cabinets
• Vehicle construction

Is this insert component touch-safe?

This component's body is made of insulating thermoplastic so you can trust you won't be shocked when touching it.

Approvals

UL listed; CSA certified

HBS Range

Assembled connectors are type tested to 35A, 440Vac. Features are as listed for 440Vac 16A Group C connectors but with cable acceptance up to 6.0mm² wires by screw termination.

CSA 53004

EPIC Rechtecksteckverbinder / Rectangular Connectors / Connectuer Rectangulaire - General Specifications

EPIC H-BS Kontakteinsätze / Contact Inserts / Inserts le Contact
