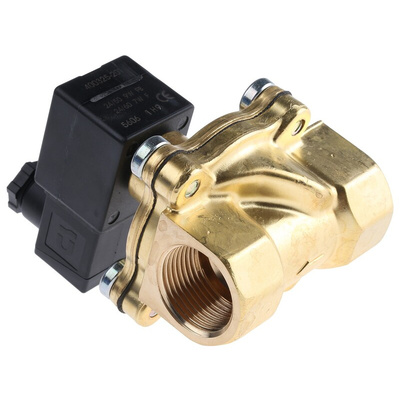

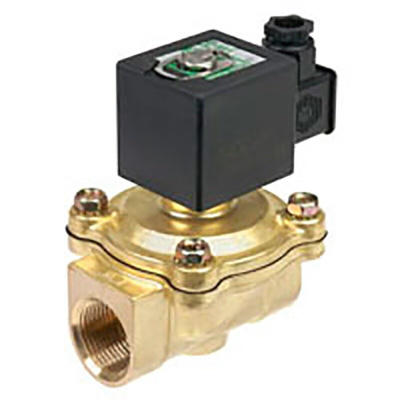

EMERSON – ASCO Solenoid Valve SCG238A050-24V 50HZ, 2 port(s) , NC, 24 V ac, 1in, Клапан

238 series 2/2 power-assisted solenoid valves

Two way solenoid valves for controlling hot and cold water.
No minimum operating pressure (floating diaphragm).
Solenoid valves designed to eliminate water hammer when water is turned off.
Self-cleaning device integrated into the diaphragm aperture for optimum performance.

Compact solenoid valves suitable for most gas and fluid handling applications. Where practical, valves are shown with a schematic diagram showing the (circuit) function. The diagram is laid out so that the left-hand side of the diagram describes the valves operation when the coil is energised. When the coil is de-energised, the spring (or servo-assist) return controls the valve and is described on the right-hand side of the diagram. The 3 / 2-way designation indicates a valve with three ports and two modes of operation. It is normal practice to refer to 2 / 2-way valves as two ways. The port designations A, B, P, P1, P2 and R are used on the schematic diagrams and are marked on the valve bodies. Valve bodies are marked for a specific circuit function but can often be used for other functions. Reference to the schematic diagrams and technical specifications indicates the appropriate connections and pressure capabilities when an alternative circuit function is required.

238 Series Data Sheet
