801K, Tempo 200FP Tone Generator, 2 Tone, 1100Hz Tone Frequency, Тестер

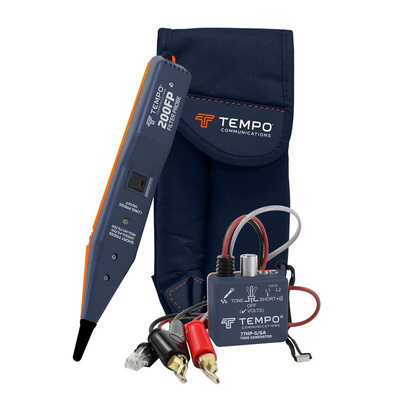

801K Premium Tone and Probe Kit

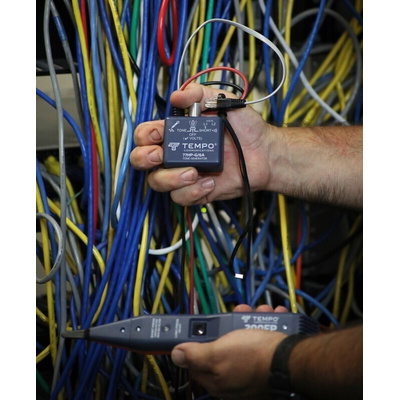

The kit comprises the 77HP/6A High Power Tone Generator and the 200FP Inductive Amplifier in a rugged woven polyester carrying case. The 801K represents the top-of-the range in wire and cable identification. When first turned on the 200FP is in the normal tone probe mode, detecting and playing most voice frequency signals. With a short press of the control button the probe enters the filtered mode, eliminating the hum and buzz created by light fixtures and power lines

With its 3 types of noise filtration virtually eliminating power-related noise, the 801k is ideal for working on powered lines and equipment. Tone generator can also be used on twisted pair wiring, single conductors, coax cables, de-energised a.c. wiring.

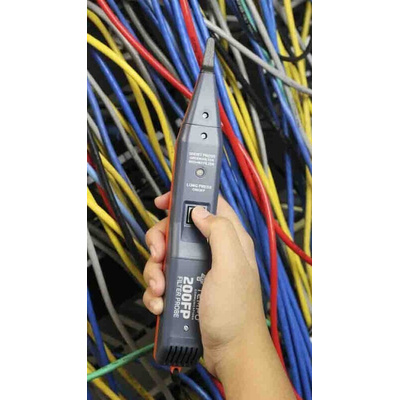

Filter Probe 200FP

Slim design
Recessed on/off push button
Adjustable sensitivity/volume control
Normal or filter mode switch
Recessed tabs for test telephone or headset connection
50 hour nominal battery life
100mΩ input impedance

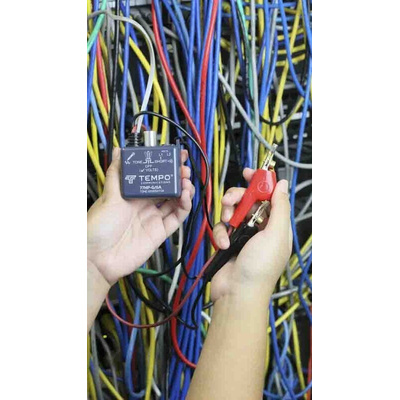

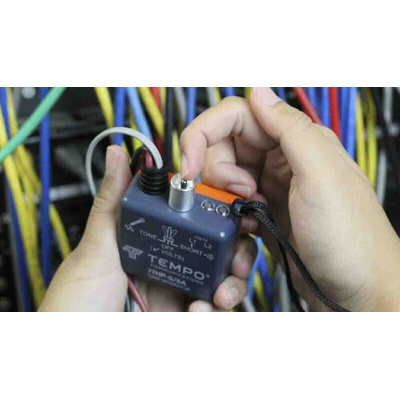

Tone Generator 77HP/6A

Fast, Accurate Wire Identification
Sends Tone to Identify Wires
Two Distinct Tone Signatures
Polarity Indication
Continuity Test
Talk Battery supply
Adjustable Volume Control
Visual and Signal Strength Indication
Large Speaker for Noisy Environments
Facility for Headset/Buttset connection
Choice of Metallic or Plastic Probe Tip
2-Line Modular Test Lead
3-Colour LED identifies AC Ring Voltage
Rugged Industrial Design

801K Premium Tone & Probe Kit
