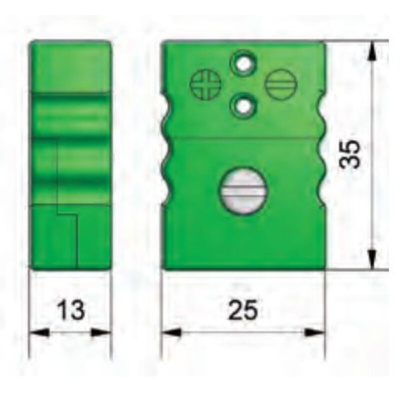

R9-1717 J, Reckmann In-Line Thermocouple Connector for Use with Type J Thermocouple, Miniature

Standard Connector for Thermocouples

Standard connector for thermocouples, thermal cables and compensation cables
With solid round contacts made of thermal material
Protected against reverse polarity
Colour-coded according to DIN 43714 and DIN 43722

Thermocouple Junctions (Type K, N, T, J & R)

Colour-coded according to IEC 584-3 1989 / BS4937 Part 30 1993
Standard and miniature connections
For thermocouples, extension cables and compensating cables
Enable connections without thermoelectromotive force being introduced
All contacts are polarised to prevent reverse polarity
Fully compatible with thermocouples and thermocouple conducting components of the same type
Line pairs (plug and socket) are also available for type K and T (miniature version only)

Mineral Insulated Thermocouples R9 Data Sheet
