E3ZR812M, Omron Retroreflective Photoelectric Sensor, Block Sensor, 100 mm → 4 m Detection Range, Фотоэлектрический датчик

E3Z Miniature High Performance Sensors

Through-beam (Infrared LED), Retro-reflective (Visible red LED) and Diffuse scan (Infrared LED) photoelectric sensors

IP67 rated PBT housing with methacylate lens
PNP and NPN output configurations
Light ON/dark ON selectable
Small dead-band for sensing close targets
Retro-reflective versions have polarised light source for shiny object detection
Short circuit and reverse polarity protection
Mutual interference protection (retro and diffuse versions only)
Operating temperature range -25° → +55°C

Note

For suitable reflector see stock no. 171-3779 (3m range)

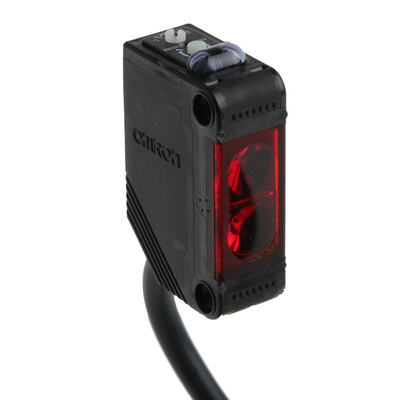

OMRON Photoelectric Sensor, PBT Housing, 1ms Response Time - E3ZR Series - E3ZR812M

Need to precisely pick out objects in your industrial equipment without making physical contact? Go for this photoelectric sensor from OMRON. It sends out a beam of light that bounces back off a reflector, creating a detection zone. When an object passes through this field, it sends a signal to your controller to perform a preset action. The unit's PBT housing resists wear and impact, making it fit for use in harsh environments. Thanks to a detection range between 100mm and 4m, this is a versatile workmate for both large and small equipment, including doors and gates.

Features & Benefits

• Quick response time of 1ms for instant reactions to object detection

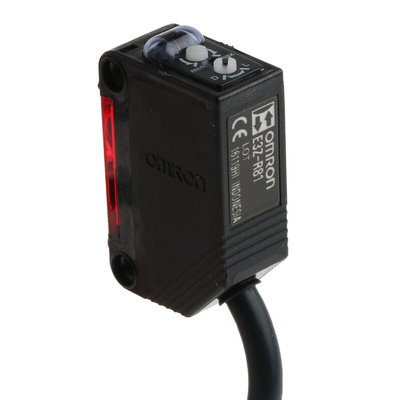

• Device is easy to manually adjust thanks to clearly labelled buttons on the top

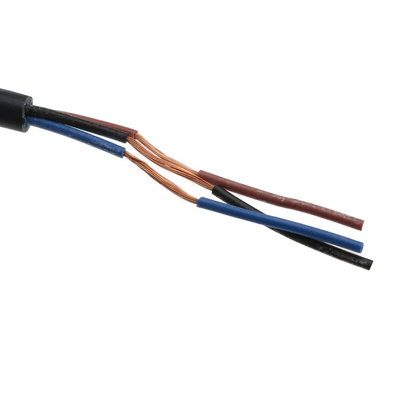

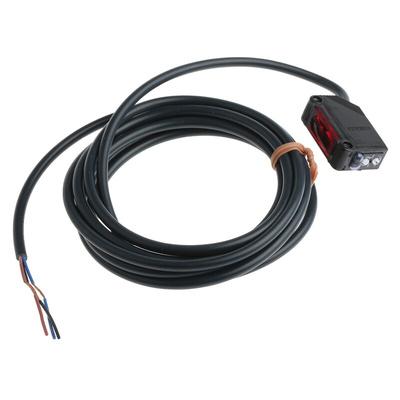

• Comes with a 2m cable for easy access to your control unit
• Compact dimensions of 31 (H) x 10.8 (W) x 20mm (D) make it the right fit for setups with limited space

Applications

• Material handling equipment
• Process and packaging industry
• Oil and gas plants

Is this sensor waterproof?

Yes, its IP67 rating shows that it's protected from dust and withstands immersion in up to 1m of water for 30 minutes.

Datasheet

Brochure - E3Z Photoelectric Sensors
