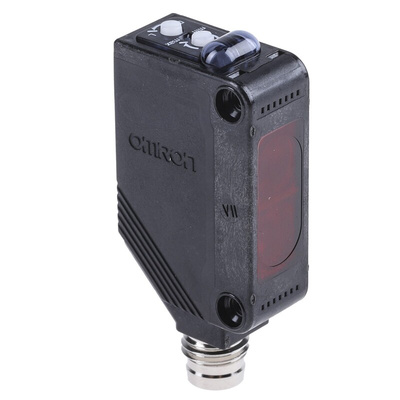

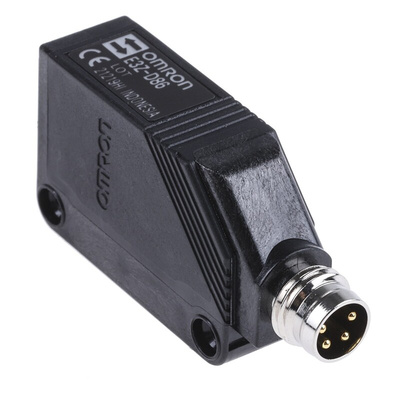

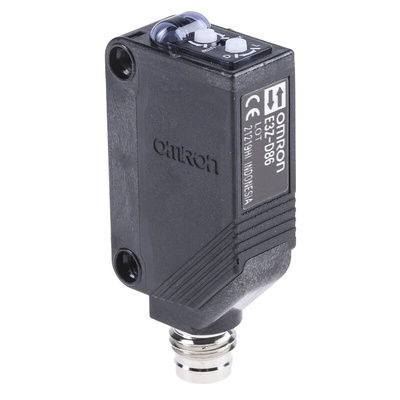

E3ZD86, Omron Diffuse Photoelectric Sensor, Block Sensor, 5 mm → 100 mm Detection Range, Фотоэлектрический датчик

E3Z Miniature High Performance Sensors

Through-beam (Infrared LED), Retro-reflective (Visible red LED) and Diffuse scan (Infrared LED) photoelectric sensors

IP67 rated PBT housing with methacylate lens
PNP and NPN output configurations
Light ON/dark ON selectable
Small dead-band for sensing close targets
Retro-reflective versions have polarised light source for shiny object detection
Short circuit and reverse polarity protection
Mutual interference protection (retro and diffuse versions only)
Operating temperature range -25° → +55°C

Note

For suitable reflector see stock no. 171-3779 (3m range)

Omron E3Z Series Photoelectric Sensor, IP69K, 100mA Maximum Current - E3ZD86

This advanced Omron photoelectric sensor features cutting edge diffuse technology with an infrared light source. Designed to provide precise detection capabilities, this sensor offers a detection range from 5mm to 100mm. The durable housing material and IP69K rating ensure reliable performance even in challenging environments.

Features & Benefits

• Cutting edge diffuse technology for accurate detection
• Infrared light source for optimal performance
• Detection range from 5mm to 100mm for versatile applications
• IP69K rating for durability in harsh conditions
• Block style sensor design for easy integration
• PNP output for seamless connectivity
• Phototransistor technology for enhanced reliability
• Omron E3Z series sensor for proven quality

Applications

• Ideal for industrial automation systems
• Perfect for use in electronics manufacturing
• Suitable for applications in the electrical industry

Can this sensor detect objects in a range of 5mm to 100mm?

Yes, the sensor is designed to detect objects within this specific range.

Will this sensor function effectively in high-temperature environments?

Yes, the sensor is capable of operating at high temperatures to ensure reliable performance.

Is this sensor compatible with PNP output systems?

Yes, the sensor features a PNP output for seamless connectivity.

Can this sensor be used in block-style mounting configurations?

Yes, the sensor is designed in a block style for easy integration into different setups.
