9025430000, Weidmuller German Colour Coded Bootlace Ferrule Crimp terminal Kit

German and DIN Standard Bootlace Ferrule Kits

From Weidmuller, a selection of DIN Standard and German colour code bootlace ferrule kits, ideal for crimping to a variety of wire sizes. These kits contain bootlace ferrules with plastic shrouds and are supplied in a convenient and compact plastic case Part number

• Ferrule kits 1 & 2 are colour coded to DIN standard - part number 414-6835 kit 1
part number 374-4315 kit 2
• Ferrule kits 3 & 4 feature German colour code - part number 374-4292 kit 3
part number 414-6841 kit 4

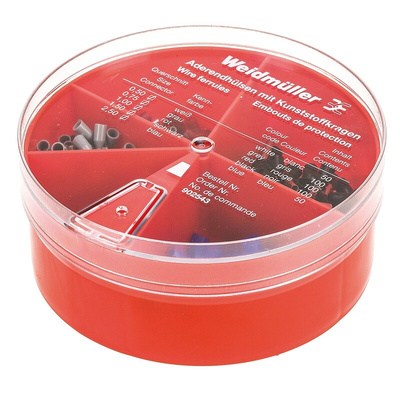

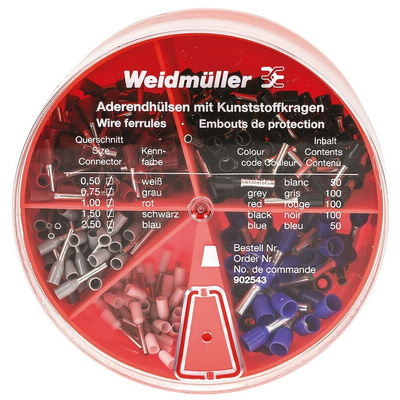

Weidmuller Crimp Terminal Kit, Insulated, 0.5 to 2.5mm² Wire Ends - 9025430000

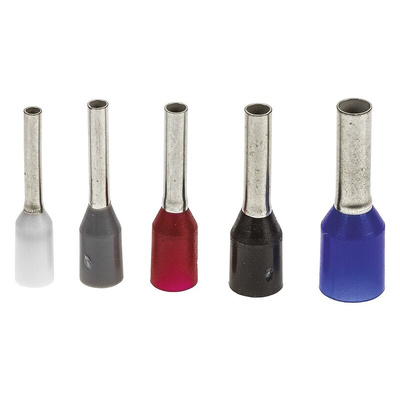

Create secure electrical connections in your machinery using this crimp terminal kit from Weidmuller. The bootlace ferrule connectors let you tightly join your cable to a terminal so you can easily attach it to another wire or your PCB. As they feature built-in plastic shrouds that offer insulation protection to help prevent electric shock, these components are safe to handle. For versatility, they can accommodate wire ends ranging in size from 0.5 to 2.5mm².

Features & Benefits

• Shrouds are colour-coded for ease of identification
• Plastic case is divided into sections for easy sorting
• Total kit weight of 83g for portability

Applications

• Electrical engineering
• Automotive industry
• Prototype design
• Robotics
• Consumer electronics

How do I crimp a wire to a connector?

To crimp a wire to a connector, strip the outer jacket using a wire stripper or a small blade. Insert the stripped end into your selected terminal and place the terminal in the jaw of your crimping tool. Press it down with enough force to create a tight connection. You can attach your crimped terminal to a circuit board or fasten it to other electrical components.
