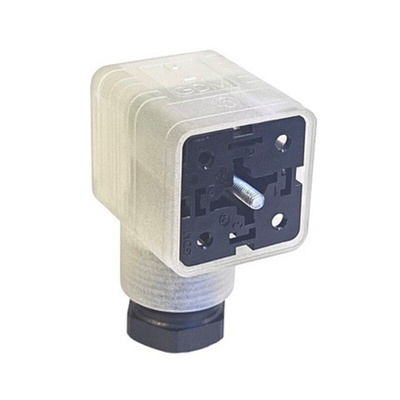

932527002 GDML 2011 LED 24 YE black, Hirschmann GDML 2P+E DIN 43650 A, Female Solenoid Valve Connector, with Indicator Light, 24 V ac/dc Voltage, Разъем

Belden Hirschmann Solenoid Valve Connector, 8A Current Rating, 4.5 to 11mm Cable Diameter - GDML Series - 932527002 GDML 2011 LED 24 YE black

This solenoid valve connector from Belden's Hirschmann range lets you make safe connections in your fluid-powered equipment. It comes with an integrated protective earth wire to minimise the risk of electrical build-up and ensure user safety. The device connects two circuits at once to deliver efficient system coverage. As shown by its IP65 rating, the unit is dust-tight and resistant to low-pressure water jets, so you can depend on it in tough industrial conditions.

Features & Benefits

• Industry-standard shape for compatibility with common components
• Durable PA body for long-lasting impact protection
• Top-mounted screw locks in place for a secure connection that resists vibration

Applications

• Injection moulding
• Material handling systems
• Metalworking

How do I know this connector is properly installed?

This connector has a yellow LED power indicator that lights up when the device is correctly installed.

Type A DIN 43650 Hirschmann

A comprehensive range of cable sockets, appliance connector bases and accessories typically for use with solenoid valves on pneumatic and hydraulic equipment. The inner connector can be rotated through 90° increments so the gland can be positioned in all four directions. Housing material is glass-filled nylon making them impact resistant.,All Hirschmann appliance connectors feature terminals that can be screwed onto bare or ferruled conductors, or will accept crimp ring/fork terminals under the head of the screw.,All are supplied complete with centre retaining screw, while plug bases are solder terminated and supplied with fixing screws. Suitable gasket to provide IP65 sealing, stock-no. 156-4729. Supplied in bags of 10

Datasheet

Instruction Sheet

Product / Process change notification

PCN-LTPS-2018-06-28_GDM Series EOL_EN.pdf
