NSYMM54, Schneider Electric 350 x 2.5 x 450mm Mounting Plate for use with Spacial CRN Enclosure

Schneider Electric Chassis Plates & Accessories for Sheet Steel IP66 Enclosures

Spare Chassis Plates

For use with "Sarel Spacial 3D (with chassis plate)" enclosures

40 mm stand-off Wall Brackets for use with all Sarel wall boxes

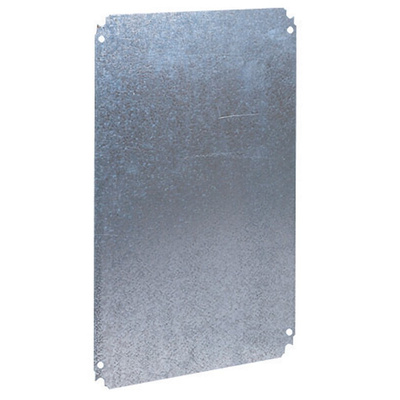

Schneider Electric Plain Mounting Plate Enclosure Accessory, 350 (L) x 450mm (H) - NSYMM54

Use this mounting plate from Schneider Electric to attach equipment to your metal enclosure. It's made from durable galvanised steel, which is resistant to corrosion, abrasion and impact, making it a reliable choice for industrial applications and challenging environments. The material's high tensile strength means the plate – at just 1.8mm thick and weighing 2.22kg – can bear a permanent permissible load of 90kg. With standard dimensions of 350 (W) x 450mm (L), it's designed to suit enclosures from the Schneider Electric Sarel Spacial 3D range. For simple installation, the plate fixes directly to your enclosure's back studs.

Features & Benefits

• Free of toxic metals for environmental responsibility
• Notched corners and pre-drilled fixing holes for simple installation
• Screw fixing for a secure fit and stability in applications where vibration is likely

Applications

• Control panel cabinets
• Industrial automation
• Safety stations

How do I fix this mounting plate to my enclosure?

To directly attach this mounting plate to the back stud of your enclosure, step-slide it in place then use four standard M8-threaded screws to secure it.
