RS PRO PT100 RTD Sensor, +60°C Max, Датчик температуры

Temperature Sensors for Air Conditioning

Thermistor and Pt100 type sensors in a variety of packages suitable for use with most air conditioning control systems.

Sensor Types:
Thermistor: direct thermistor (NTC) temperature (10kΩ at 25°C) versions.
Pt100 sensor: 2 wire sensors with probes providing a linear response and positive temperature coefficient.

Package Types:

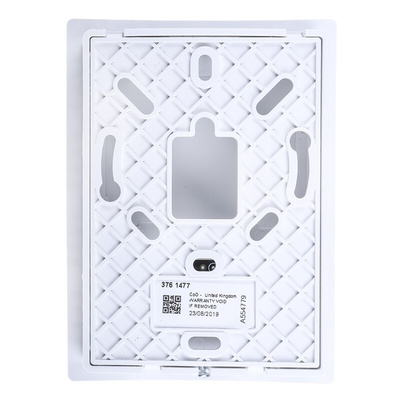

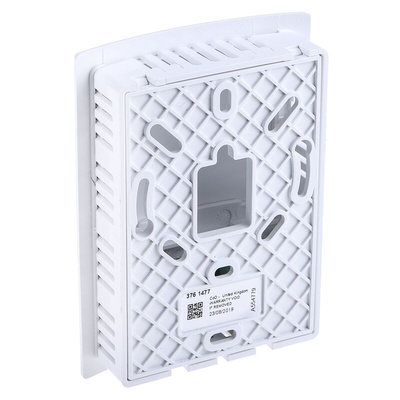

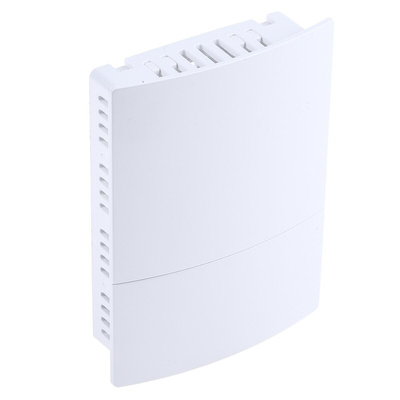

Space Air (813-806; 376-1477): a white ventilated unit for interior use, temperature range -10 to +60°C.
Duct Air (813-862): an IP65 housing with 20mm conduit entry, 150x6mm dia. probe, temperature range -30 to +70°C.
Outside Air (813-828; 813-878): an IP65 enclosure with a small caps, 20mm conduit entry, temperature range -30 to +70°C.
Liquid Immersion (813-834; 813-884): an IP65 enclosure with 20mm conduit entry, 150x6mm diameter probe which fits into a pocket (available separately) for a temperature range of -30 to +70°C
Pipe-Clamp on (813-840; 813-890): a sensing element located in a lug which is fitted to the pipe via cable tie. IP65 terminal with 2m of cable, maximum temperature 110°C.

Note

The pockets have grub screw probe fixing for easy replacement.

RS PRO Relative Humidity/Temperature Transmitter

Different industries need different solutions to keep up with the evolving world. If humidity and temperature are in play, Humidity/Temperature Transmitter seems to capture both requirements to support many applications. Merging both strengths, the Sensor can meet the specific demands of temperature-sensitive devices.

Those popular products have their place across everyday life situations, from the apparent objects in our home, such as kettle or toaster to more advance applications including monitoring the temperature in alcohol breathalysers or maintaining temperature for equipment to fabricate medical drugs. Still, the key message is the responsiveness and accuracy of the detection circuit is essential for quality control.

We are proudly introducing our own branded RS PRO Temperature Sensor for Air Conditioning for use with most air conditioning control systems. The sensing temperature is ranging from – 10°C to + 40ׄ°C providing a reliable operating temperature range for the interior application. The 2-wire Sensor with brass probes accelerates a linear response and positive temperature coefficient.

The Temperature Sensor is a high specification, micro controlling and reducers of measurement errors with white ventilated ABS unit.

You do not have to pay a premium price to get a professional quality part as our engineers testified our Transmitter so that you can purchase with full confidence.

Depending on sensor types and package type requirements, you can check the following options:

Sensor Types:

• Thermistor: direct Thermistor (NTC) temperature (10 kΩ at 25°C) versions

• PT 100 Sensor: 2 wire sensors with probes providing a linear response and positive temperature coefficient

• Space Air (813-806; 376-1477) a white ventilated unit for interior use, temperature range -10°C to + 60°C

• Duct Air (813-862) an IP65 housing with 20mm conduit entry, 150x6mm dia. probe, temperature range – 30°C to + 70°C

• Outside Air (813-828; 813-878) an IP65 enclosure with a small caps, 20mm conduit entry, temperature range -30 to +70°C

• Liquid Immersion (813-834; 813-884) an IP65 enclosure with 20mm conduit entry, 150x6mm diameter probe which fits into a pocket (available separately) for a temperature range of -30 to +70°C

• Pipe-Clamp on (813-840; 813-890) a sensing element located in a lug which is fitted to the pipe via a cable tie. IP65 terminal with 2m of cable, maximum temperature 110°C

Features and Benefits

• Suitable for most interior room applications where an air conditioning control system is in place


• 2-wire Sensor accelerate a linear response and positive temperature coefficient


• The sensing temperature ranging from – 10°C to + 40ׄ°C


• White ABS (acrylonitrile butadiene styrene) coverage


• Robust Temperature Detector providing responsiveness and accuracy


• When buying interior room Temperature Sensor, you are getting a long-term stability

Applications

The Temperature Transmitter with a diverse range of industries across multiple sectors makes them desirable in:

• Cleanroom monitoring


• HVAC (Heating Ventilation, and Air Conditioning)


• Ideal for applications where space is at a premium


• Use with building management systems


• Home appliances


• Drug industry

Frequently asked questions

How long does Humidity/Temperature Sensor last?

Depending on how the unit is getting maintain along with the effectiveness of parameters will determine life expectancy. The average estimated life of a Temperature Sensor should last around seven to ten years.


Why RS PRO?

RS Pro is our family brand to go-to and brings you a wide range of high-quality and high-value products to support your project. Trusted by engineers all over the world, every part of every RS PRO product is always rigorously tested against demanding industry standards.
We are only giving the RS PRO seal of approval if we're confident of their exceptional quality, which means you can be convinced too.

Note

The pockets have grub screw probe fixing for easy replacement.
