RS PRO Heating Element, 247 x 62.5mm, 250 W, 230 V ac, Нагревательный элемент

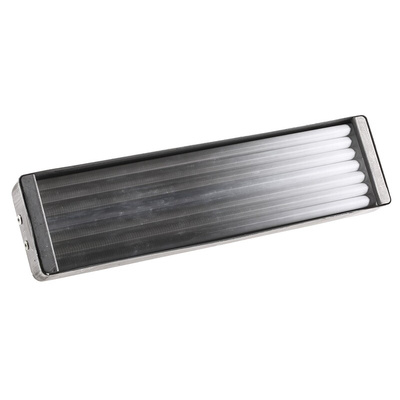

RS PRO Enclosed Quartz Infrared Heating Element (250W)

A Quartz infrared heating element that reaches operating temperature within seconds of power on for use in industrial applications where an instant heat source is required.
Consisting of a wound resistance coil run through a series of parrel Quartz tubes encased within a highly reflective Aluminised Steel housing ensuring minimum heat and radiation loss from the rear of the heater.
Mounted easily using the two M5 x 30mm screws at the rear of the unit and capable of installation into reflectors, projectors and panels.
Ideal for use in systems that require zone control or long off cycles due to the rapid heat response.

Features and Benefits

• Quartz infrared heating element


• Suitable for medium wave infrared curing, heating and drying


• Supply voltage 230V ac


• Power rating of 250W


• Aluminised Steel housing


• Two M5 x 30mm mounting bolts on the rear


• 100mm lead length


• Medium wave infrared energy 1.5 to 5.6 microns


• Dimensions of 247 x 62.5mm

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

Multi-Purpose Process Heaters

In order to obtain optimum performance from these products, it is advised that temperature sensing and control elements be used with them.

Warning

These heaters shall only be used where adequate electrical, thermal and mechanical barriers are provided to prevent access to hazardous parts without the use of a tool.

RS Pro Datasheet
