TDK-Lambda Switching Power Supply, ZWQ130-5224/A, 5 V dc, ±12 V dc, ±24 V dc, 2 A, 4 A, 15 A, 130W, Quad Output, 120, Источник питания

TDK-Lambda Switch Mode Power Supply

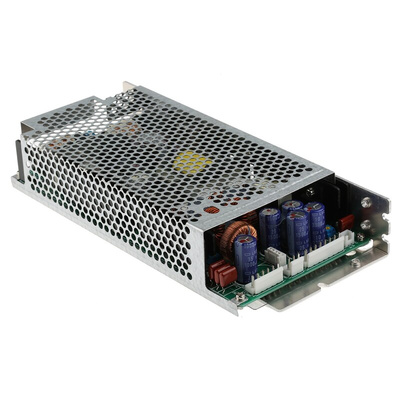

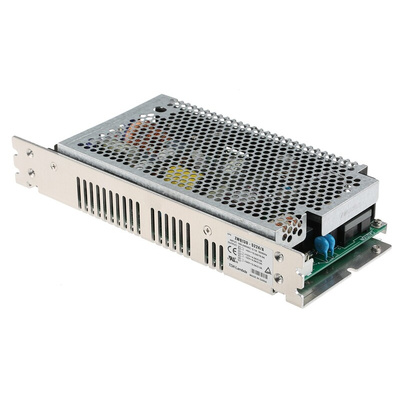

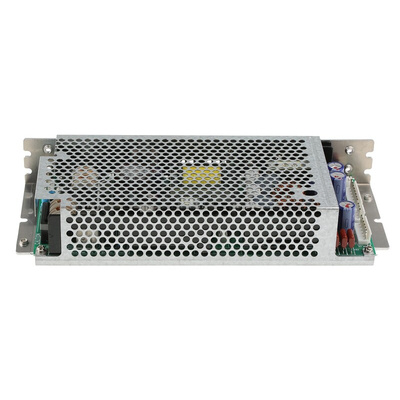

The TDK-Lambda ZWQ series 130W quad output AC to DC embedded switch-mode power supply has an output current ratings are 15A at 5VDC, 4A at 12/15VDC,4A at -12/15VDC, and 2A at 24VDC. It has a universal input supply voltage rating from 85VAC to 265VAC and 120VDC to 370VDC.
Note:
Power ratings will be reduced when used with a cover kit. The connectors are not provided (requires ’JST’ VH series connectors).
Inclusions:
Cover and an L bracket.

Features and Benefits

Compact design only 1U in height allowing rack mounting in card format
Operating temperature ranges between -10°C and 60°C
Overcurrent protection
Overvoltage protection
Remote sense
Supplied as standard ±12 on rails 2 and 3 removal of on board connectors converts to ±15V
Supplied complete with cover

Applications

Broadcast
Communication
Industrial
LED signage
Test and measurements

Certifications

CSA950
EN60950
EN61000-4
IEC61000-3-2
UL1950
VDE 0160
VDE0160
