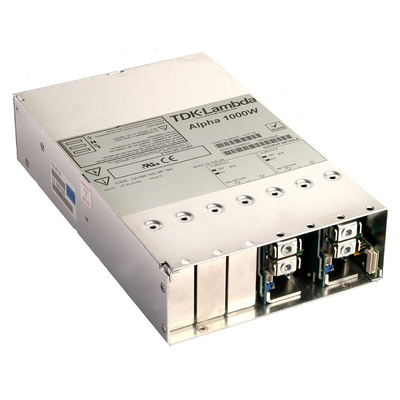

TDK-Lambda Switching Power Supply, CA1000/24, 24V dc, 40A, 1kW, 1 Output, 120 → 360 V dc, 85 → 265 V ac, Источник питания

TDK-Lambda Switch Mode Power Supply

The TDK-Lambda Alpha series 1000W single output AC to DC embedded switch mode power supply has an output current rating of 16.5A at 24VDC. It has a universal input supply voltage rating from 85VAC to 265VAC and 120VDC to 360VDC.
Note:
Total of output loads must not exceed the rating of the unit. De-rates 2.5%/°C from 50°C to 65°C.

Features and Benefits

Voltage adjustment on all outputs
High efficiency 75% typical
Overvoltage/ overcurrent protection
Thermal protection
No minimum load required
All outputs fully floating
Fully regulated outputs
Remote sense
Integral fan
Rapid installation
Power factor corrected
Capable of up to 14, fully regulated and independent outputs
Low leakage options
Fast-on tab connections

Certifications

BS EN60950
UL1950
CSA 22.2-234
UL certified
CSA certified
BS(KM13930)
EN61000-3-2 (PFC standards)
EN55022 (RFI)

Approvals

UL Recognised; CSA Certified

Datasheet

Alpha-1000-1500W Series Data Sheet
