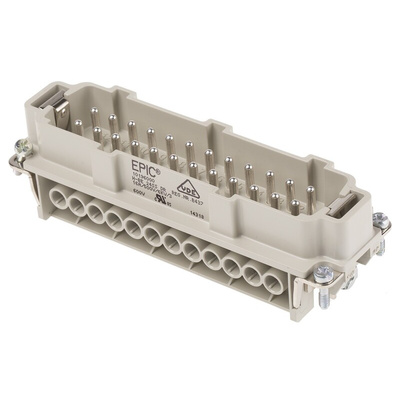

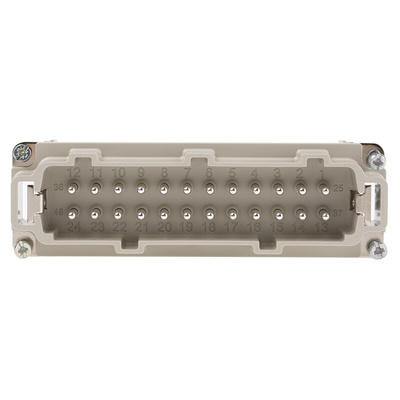

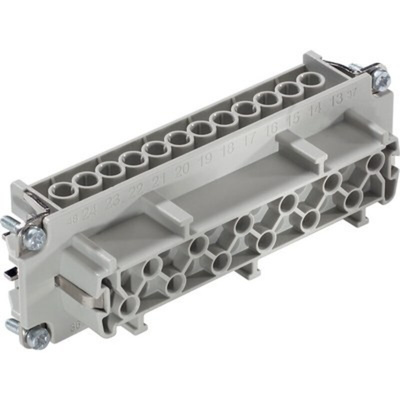

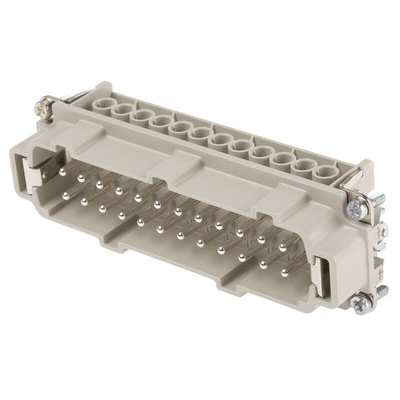

10196000, Epic Contact Heavy Duty Power Connector Insert, 16A, Male, H-BE Series, 24 Contacts

LAPP Heavy Duty Power Connector Insert, 600V Rating, Straight Body Orientation - EPIC Series - 10196000

Make a powerful connection with this 24-contact male connector insert from LAPP. It keeps contacts securely in place and delivers reliable performance when working with high voltages up to 600V. It's rated at 16A and each of the contacts has its own earth connection to maximise safety. For space efficiency, the contacts are arranged over two rows with a straight-body orientation. For easy compatibility, the unit accepts standard cables between 0.75 and 1.5mm².

Features & Benefits

• Crimp termination for a connection that resists heat and vibration, so you know it won't budge
• Wide operating temperature range between -40°C and +100°C, making it compatible with harsh settings
• Straightforward cable mounting saves you time and effort

Applications

• Automotive production
• Robotics systems
• Manufacturing facilities

Is this insert long-lasting?

Durable silver-plated copper alloy contacts and a lifespan of up to 500 cycles mean this insert will be with you for the long haul.

Approvals

VDE; CSA; UL; SEV

Inserts (Screw, Crimp & Cage Clamp)

EPIC Rechtecksteckverbinder / Rectangular Connectors / Connectuer Rectangulaire - General Specifications

EPIC H-BE Kontakteinsätze / Contact Inserts / Inserts le Contact

Datasheet - 10196000

Manual - Assembly Instructions
