LFVLT60-3000, EOS, 60W Embedded Switch Mode Power Supply SMPS, 5.2 V dc, 12.5 V dc, Open Frame, Источник питания

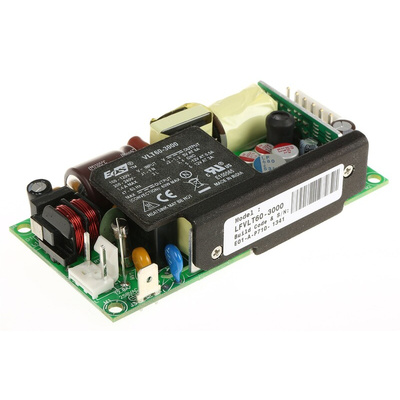

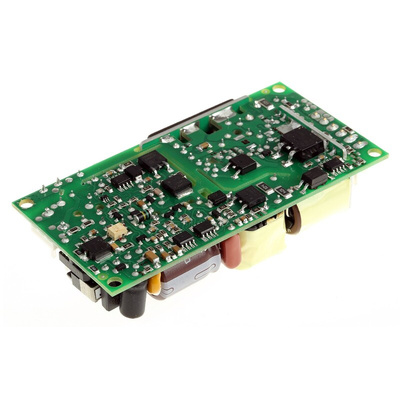

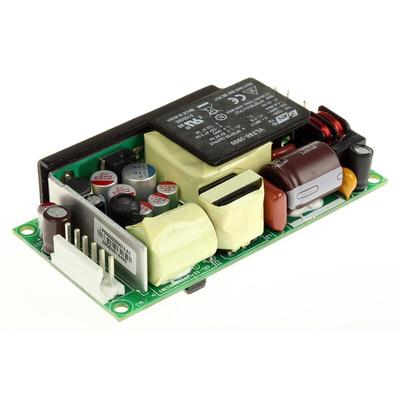

EOS Embedded Switch Mode Power Supply

The EOS VLT series 60W triple output AC to DC embedded switch mode power supply has an output current of 8A at 5.2VDC, 3A at 12.5V and 0.5A at 12.5V. It has a universal input supply voltage rating ranging from 90VAC to 132VAC/180VAC to 264VAC.
Note:
Connectors are not supplied
VLT130 current rating with a fan (180LFM). Power rating with forced airflow requires a user-supplied 15CFM fan

Features and Benefits

Overvoltage
Power limit
Short circuit protection
Dual channel output
High reliability MTBF greater than 100,000 hours
Operating temperature ranges between -20°C and 50°C

Certifications

IEC950
EN60950
UL1950
EMI/RFI to CISPR 55011//14-B. FCC 15-B
Power factor correction to EN61000-3-2 (VLT80 and VLT130)
VDE approved

VLT 60 Series 60W single and triple output AC/DC Power Supplies Data Sheet
