GHG5117304R0001, Eaton, Eaton Crouse-Hinds IP66 Yellow Cable Mount 2P + E Power Connector Plug ATEX, Rated At 16A, 120 V

Eaton CEAG Explosion Protected Plug and Socket System

Eaton CEAG Crouse-Hinds enhanced BS4343 (IEC309) industrial power connectors are designed specifically for hazardous area environments. The Enhanced ranges offer mechanical advantages over the popular and widely used standard versions. These heavy-duty connectors provide a reliable high-performance power supply connection even under vibration or the effects of an aggressive atmospheric environment.
Options available include:
377-7236 – Yellow 2P+E hazardous area plug,16A 120V
377-7242 – Blue 2P+E hazardous area plug,16A 240V

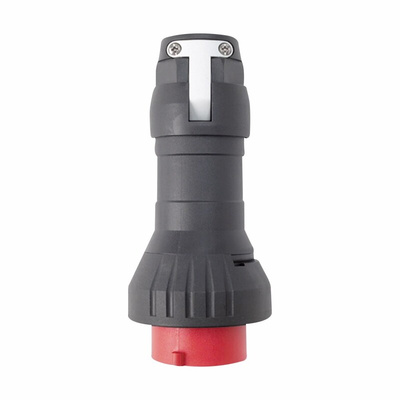

377-7258 – Red 3P+E hazardous area plug,16A 415V
810-4692 – Black 4P Heavy duty plug, Zone1, 32A, 415V
811-0704 – Black 5P Heavy duty plug, Zone1, 32A, 415V

Features & Benefits

• Patented plug and turn connections
• Heavy duty and high-quality connectors designed for power distribution in industrial settings
• Time-saving easy plug-in with low insertion force
• Ingress protection to IP66/67
• Suitable for Zone 1 and Zone 2 applications, and also Zone 21 and Zone 22 dust applications

CEAG Standard hazardous area plug connectors will mate with Enhanced sockets and couplers
CEAG Enhanced hazardous area plug connectors will NOT mate with standard sockets and couplers
Couplers will accept Enhanced and Standard Plug connector

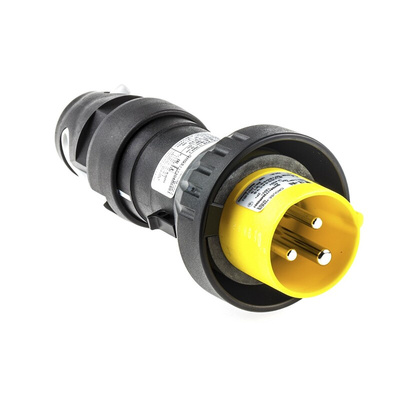

Eaton CEAG Crouse-Hinds ATEX Power Connector Plug, Yellow, 16A - GHG5117304R0001

Need a heavy-duty power connector for hazardous industrial environments? This versatile Eaton CEAG Crouse-Hinds connector plug is designed for use in dusty and damp environments or outdoors. A plug-in method makes it easy to install quickly and with minimal force, while its patented plug-and-turn connections ensure fast and reliable mating. This connector is resistant to sustained machine vibration and you can rely on its consistent performance, even in hot, harsh and potentially dangerous industrial environments.

• Durable polyamide (PA) enclosure material suitable for power distribution in industrial settings
• IP66 (ingress protection) rating means the unit is totally sealed against dust and is also protected against strong jets of water
• Wide operating temperature range of -55°C to +55°C, for use in demanding conditions

What is an explosion-protected product?

This means a product is universally approved for use in areas where explosive gases are likely to be present during normal operation. This connector plug is Zones 1 and 2 ATEX (atmosphere explosible) certified for use in atmospheres where clouds of combustible dust are possible.

Note

Eaton formerly known as CEAG

Approvals

BS4343; IEC309; Eex de IIC T6; ATEX; PTB ATEC 1039
