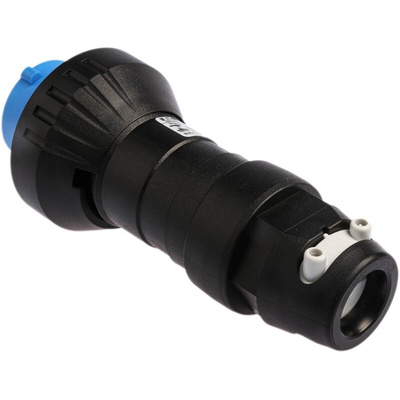

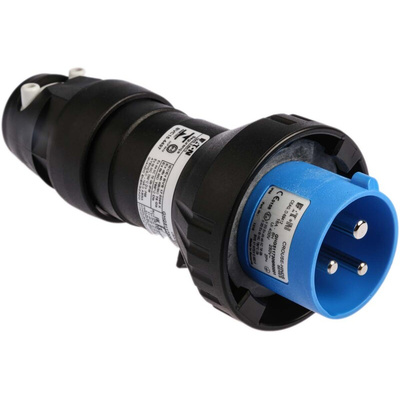

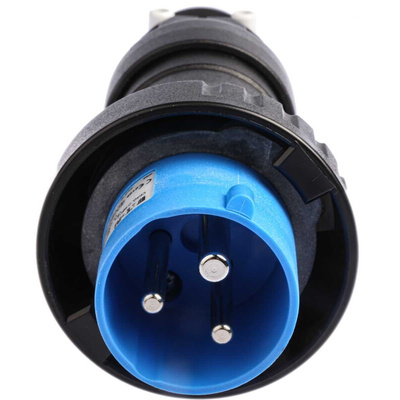

GHG5117306R0001, Eaton IP66 Blue Cable Mount 2P + E Power Connector Plug ATEX, Rated At 16A, 240 V

Eaton CEAG Explosion Protected Plug and Socket System

Eaton CEAG Crouse-Hinds enhanced BS4343 (IEC309) industrial power connectors are designed specifically for hazardous area environments. The Enhanced ranges offer mechanical advantages over the popular and widely used standard versions. These heavy-duty connectors provide a reliable high-performance power supply connection even under vibration or the effects of an aggressive atmospheric environment.
Options available include:
377-7236 – Yellow 2P+E hazardous area plug,16A 120V
377-7242 – Blue 2P+E hazardous area plug,16A 240V
377-7258 – Red 3P+E hazardous area plug,16A 415V
810-4692 – Black 4P Heavy duty plug, Zone1, 32A, 415V
811-0704 – Black 5P Heavy duty plug, Zone1, 32A, 415V

Features & Benefits

• Patented plug and turn connections
• Heavy duty and high-quality connectors designed for power distribution in industrial settings
• Time-saving easy plug-in with low insertion force
• Ingress protection to IP66/67
• Suitable for Zone 1 and Zone 2 applications, and also Zone 21 and Zone 22 dust applications

CEAG Standard hazardous area plug connectors will mate with Enhanced sockets and couplers
CEAG Enhanced hazardous area plug connectors will NOT mate with standard sockets and couplers
Couplers will accept Enhanced and Standard Plug connector

Eaton CEAG Crouse-Hinds Hazardous Area Power Connector Plug, 16A, 204V - GHG5117306R0001

Use this Eaton CEAG Crouse-Hinds power connector plug to hook up machinery to your power supply in both dusty and damp conditions. It's a heavy-duty plug designed to operate in hazardous environments, with a high-quality construction that includes glass fibre-reinforced nylon, impact-resistant polyamide and stainless steel. The integrated load switch handles currents up to 16A (amperes), while the plug and socket accommodate voltages up to 240V, making this a versatile choice for industrial use. Connect the conductors carefully to ensure they retain their certified explosion protection.

GHG5117306R0001 Features:

• IP66 (ingress protection) rating indicates it's dust-tight and protected against jets of water
• Brass contact material provides durability, while nickel plating enables a strong connection
• Suitable for use in explosive industrial environments
• Cable entry Ø 8 – 18 mm (3-pole)
• Connecting terminals 1 x 1.0 – 4.0 mm²
• Enclosure material- Polyamide

Can this plug be used in freezing temperatures?

Yes, this plug can operate in temperatures as hot as +55°C and as cold as -55°C. Because this device is protected against water infiltration, ice and condensation won't damage it.

How do I mount this plug?

The plug mounts directly to cables and comes with strain relief around the connector to limit fraying and provide extra durability.

Note

Eaton formerly known as CEAG

Approvals

BS4343; IEC309; Eex de IIC T6; ATEX; PTB ATEC 1039
