GHG5117406R0001, Eaton IP66 Red Cable Mount 3P + E Power Connector Plug ATEX, Rated At 16A, 415 V

Eaton CEAG Explosion Protected Plug and Socket System

Eaton CEAG Crouse-Hinds enhanced BS4343 (IEC309) industrial power connectors are designed specifically for hazardous area environments. The Enhanced ranges offer mechanical advantages over the popular and widely used standard versions. These heavy-duty connectors provide a reliable high-performance power supply connection even under vibration or the effects of an aggressive atmospheric environment.
Options available include:
377-7236 – Yellow 2P+E hazardous area plug,16A 120V
377-7242 – Blue 2P+E hazardous area plug,16A 240V
377-7258 – Red 3P+E hazardous area plug,16A 415V
810-4692 – Black 4P Heavy duty plug, Zone1, 32A, 415V
811-0704 – Black 5P Heavy duty plug, Zone1, 32A, 415V

Features & Benefits

• Patented plug and turn connections
• Heavy duty and high-quality connectors designed for power distribution in industrial settings
• Time-saving easy plug-in with low insertion force
• Ingress protection to IP66/67
• Suitable for Zone 1 and Zone 2 applications, and also Zone 21 and Zone 22 dust applications

CEAG Standard hazardous area plug connectors will mate with Enhanced sockets and couplers
CEAG Enhanced hazardous area plug connectors will NOT mate with standard sockets and couplers
Couplers will accept Enhanced and Standard Plug connector

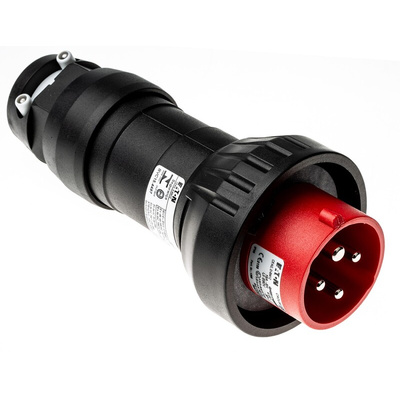

Eaton CEAG Crouse-Hinds ATEX Power Connector Plug, Red, 16A - GHG5117406R0001

Looking for a reliable three-phase power connector that's rated to Zone 1 and Zone 2 explosive atmospheres? This durable Eaton CEAG Crouse-Hinds connector plug gives you secure and effective connections in hazardous industrial environments. Hard-wearing glass fibre-reinforced nylon housing material provides excellent insulation and makes the connector resistant to impact and chemicals. Its stainless-steel hardware and nickel-plated brass contacts mean it's long-lasting and won't rust. This connector plug is also IP66 (ingress protection) rated, which means it's dust-tight and water-resistant.

• Part of the CEAG Crouse-Hinds Enhanced range, so tested for reliable performance
• Simple plug-in method saves time and uses low force to prevent damage to equipment
• Industry-standard layout for 415V, 16A three-phase supplies means it's easy to wire up
• Cable-mounting type for versatile use
• Strain relief to prevent cable damage

Where can I use this connector?

This CEAG connector is ATEX approved for hazardous and explosive environments. It also has a wide operating temperature range between -55°C and +55°C so you can use it in demanding industrial conditions and be sure of reliable performance.

Note

Eaton formerly known as CEAG

Approvals

BS4343; IEC309; Eex de IIC T6; ATEX; PTB ATEC 1039
