GHG5114304R0002, Eaton IP66 Surface Mount 2P + E Power Connector Socket ATEX, Rated At 16A, 130 V

Eaton CEAG Explosion Protected Plug and Socket System

Eaton CEAG Crouse-Hinds enhanced BS4343 (IEC309) industrial power connectors are designed specifically for hazardous area environments. The Enhanced ranges offer mechanical advantages over the popular and widely used standard versions. These heavy-duty connectors provide a reliable high-performance power supply connection even under vibration or the effects of an aggressive atmospheric environment.

Features & Benefits

• Patented plug and turn connections
• Heavy duty and high-quality connectors designed for power distribution in industrial settings
• Time-saving easy plug-in with low insertion force
• Ingress protection to IP66/67
• Suitable for Zone 1 and Zone 2 applications, and also Zone 21 and Zone 22 dust applications

CEAG Standard hazardous area plug connectors will mate with Enhanced sockets and couplers
CEAG Enhanced hazardous area plug connectors will NOT mate with standard sockets and couplers
Couplers will accept Enhanced and Standard Plug connector

Note

Cable entry sizes for 16A versions: 8-17mm², 32A 17-28mm², terminal capacity: 16A 1-4mm², 32A 4-10mm²

Approvals

BS4343; IEC309; Eex de IIC T6; ATEX; PTB ATEC 1039

Eaton CEAG Crouse-Hinds Hazardous Area Power Connector Socket, 16A, 110V - GHG5114304R0002

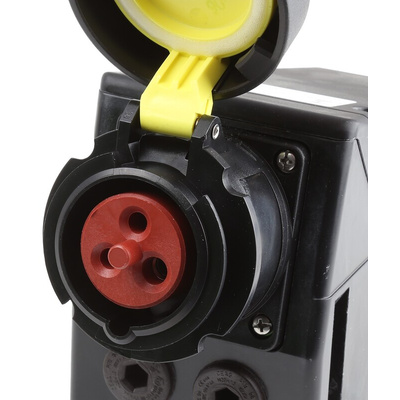

Hook your system up to an electrical supply using this socket from Eaton CEAG Crouse-Hinds. It's designed for safe operation in hazardous areas where explosives may be present. This device maintains a strong connection even if subjected to heavy vibrations, making it a dependable solution for mobile machinery, electrical installations and driving gear. You can easily mount it to any flat surface. After pushing the corresponding plug into it, a 45° turn to the right will lock it and secure your connection.

• Wide operating temperatures range of -55°C to +55°C for use in demanding environments
• Hinged cover protects the socket when not in use
• Sturdy brass contacts are plated in nickel to provide greater conductivity

Is this component protected against dust?

Yes, the glass-fibre-reinforced thermoplastic housing provides excellent resistance against both dust and liquid. An IP66 (ingress protection) rating certifies that it's dust-tight and protected even against strong jets of water, so this connector can handle a range of challenging environments.

How do I undo connection off once it's joined?

To uncouple the unit, simply turn the plug to the left to unlock it and pull the connection free.

Note

Eaton formerly known as CEAG

Approvals

BS4343; IEC309; Eex de IIC T6; ATEX; PTB ATEC 1039
