GHG5114306R0002, Eaton IP66 Black Surface Mount 2P + E Power Connector Socket ATEX, Rated At 16A, 250 V

Eaton CEAG Explosion Protected Plug and Socket System

Eaton CEAG Crouse-Hinds enhanced BS4343 (IEC309) industrial power connectors are designed specifically for hazardous area environments. The Enhanced ranges offer mechanical advantages over the popular and widely used standard versions. These heavy-duty connectors provide a reliable high-performance power supply connection even under vibration or the effects of an aggressive atmospheric environment.

Features & Benefits

• Patented plug and turn connections
• Heavy duty and high-quality connectors designed for power distribution in industrial settings
• Time-saving easy plug-in with low insertion force
• Ingress protection to IP66/67
• Suitable for Zone 1 and Zone 2 applications, and also Zone 21 and Zone 22 dust applications

CEAG Standard hazardous area plug connectors will mate with Enhanced sockets and couplers
CEAG Enhanced hazardous area plug connectors will NOT mate with standard sockets and couplers
Couplers will accept Enhanced and Standard Plug connector

Note

Cable entry sizes for 16A versions: 8-17mm², 32A 17-28mm², terminal capacity: 16A 1-4mm², 32A 4-10mm²

Approvals

BS4343; IEC309; Eex de IIC T6; ATEX; PTB ATEC 1039

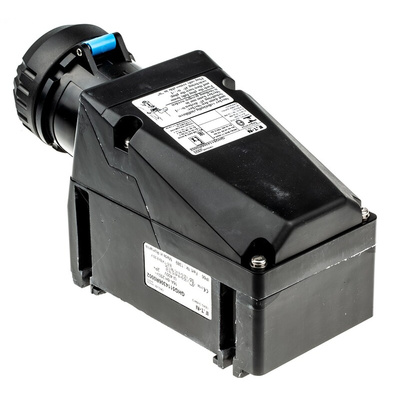

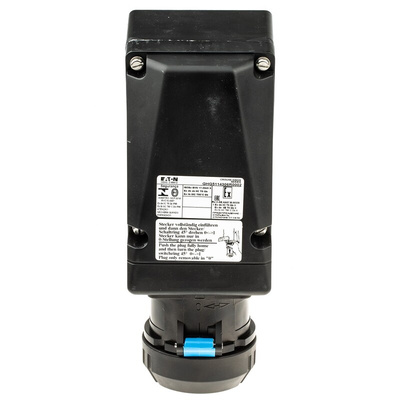

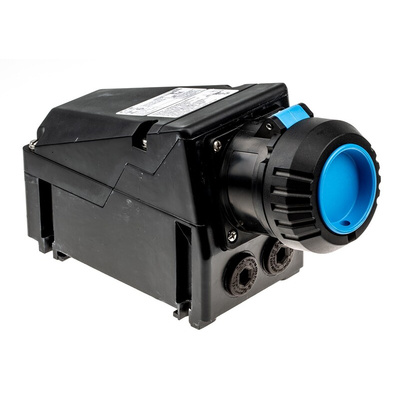

Eaton CEAG Crouse-Hinds Hazardous Area Power Connector Socket, 16A, 240V - GHG5114306R0002

Use this Eaton CEAG Crouse-Hinds power connector socket to join mobile machinery, driving gear and electrical installations to an energy supply. It's safe to use with a range of demanding applications and is particularly suited to hazardous industrial environments. The housing is made of glass-fibre-reinforced thermoplastic, a strong material that can hold up reliably, even in very harsh conditions. The socket operates in a wide range of temperatures from -55°C up to +55°C, making it a reliable choice for extreme conditions.

• IP66 (ingress protection) rating indicates it's protected from infiltration by both dust and water
• Sturdy brass contacts feature nickel plating for strong conductivity
• Plug mounts easily to any flat surface
• Hinged socket cover protects socket when unmated

Will this socket maintain a secure connection even under harsh industrial conditions?

Yes, this socket is designed to stand up to hazardous conditions, including explosions. The heavy-duty construction assures a strong connection even when exposed to vibrations or similar challenges.

How do you secure the connection so it won't shake loose?

This socket features an innovative design that lets you gently insert the plug, then turn it approximately 45° to the right to lock it into position and create a secure join.

Note

Eaton formerly known as CEAG

Approvals

BS4343; IEC309; Eex de IIC T6; ATEX; PTB ATEC 1039
