GHG5114406R0001, Eaton IP66 Black Surface Mount 3P + E Power Connector Socket ATEX, Rated At 16A, 415 V

Eaton CEAG Explosion Protected Plug and Socket System

Eaton CEAG Crouse-Hinds enhanced BS4343 (IEC309) industrial power connectors are designed specifically for hazardous area environments. The Enhanced ranges offer mechanical advantages over the popular and widely used standard versions. These heavy-duty connectors provide a reliable high-performance power supply connection even under vibration or the effects of an aggressive atmospheric environment.

Features & Benefits

• Patented plug and turn connections
• Heavy duty and high-quality connectors designed for power distribution in industrial settings
• Time-saving easy plug-in with low insertion force
• Ingress protection to IP66/67
• Suitable for Zone 1 and Zone 2 applications, and also Zone 21 and Zone 22 dust applications

CEAG Standard hazardous area plug connectors will mate with Enhanced sockets and couplers
CEAG Enhanced hazardous area plug connectors will NOT mate with standard sockets and couplers
Couplers will accept Enhanced and Standard Plug connector

Note

Cable entry sizes for 16A versions: 8-17mm², 32A 17-28mm², terminal capacity: 16A 1-4mm², 32A 4-10mm²

Approvals

BS4343; IEC309; Eex de IIC T6; ATEX; PTB ATEC 1039

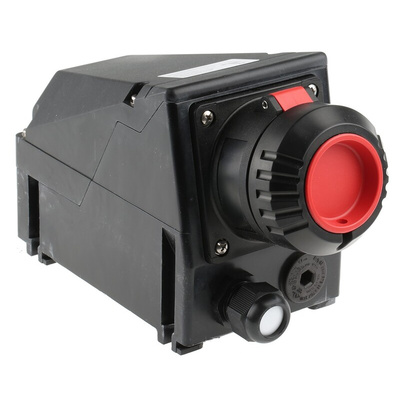

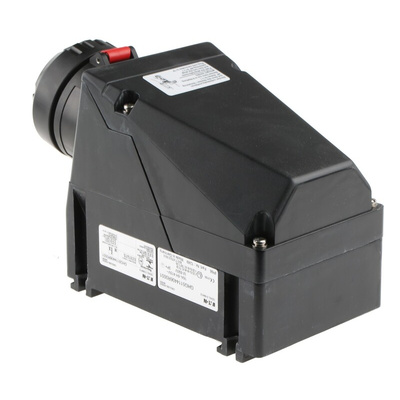

Eaton CEAG Crouse-Hinds Hazardous Area Power Connector Socket, 16A, 415V - GHG5114406R0001

This Eaton CEAG Crouse-Hinds power connector socket is a reliable solution for powering mobile and automated machinery in hazardous environments and even potentially explosive conditions. It features an innovative design that secures the plug in place, so your connection is strong even when subjected to heavy vibrations and rough handling. The glass-fibre-reinforced thermoplastic casing guards against infiltration from both dust and jets of water, so residue and particulates from explosions and sprays will have no effect on performance.

• Pole format of 3P+E (three phase without neutral) to handle large loads

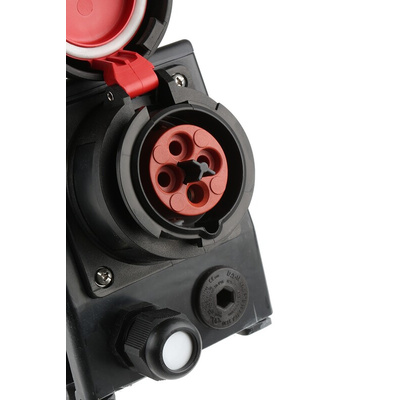

• Hinged cover fits over the socket to offer protection when not in use
• Current rating of 16A and voltage rating of 415V offers substantial capacity
• Mounts easily to any flat, stable surface for easy access

Will this component function in freezing temperatures?

Yes, the socket can operate in a wide range of temperatures from a minimum of -55°C to a maximum of +55°C.

What are the contacts made of?

The contacts are made of strong and durable brass to ensure long-lasting performance. In addition, nickel plating on the contacts provides excellent conductivity.

Note

Eaton formerly known as CEAG

Approvals

BS4343; IEC309; Eex de IIC T6; ATEX; PTB ATEC 1039
