GHG5113304R0001, Eaton IP66 Black Cable Mount 2P + E Power Connector Plug, Socket ATEX, Rated At 16A, 130 V

Eaton CEAG Explosion Protected Plug and Socket System

Eaton CEAG Crouse-Hinds enhanced BS4343 (IEC309) industrial power connectors are designed specifically for hazardous area environments. The Enhanced ranges offer mechanical advantages over the popular and widely used standard versions. These heavy-duty connectors provide a reliable high-performance power supply connection even under vibration or the effects of an aggressive atmospheric environment.

Features and Benefits

• Patented plug and turn connections
• Heavy duty and high-quality connectors designed for power distribution in industrial settings
• Time-saving easy plug-in with low insertion force
• Ingress protection to IP66/67
• Suitable for Zone 1 and Zone 2 applications, and also Zone 21 and Zone 22 dust applications

CEAG Standard hazardous area plug connectors will mate with Enhanced sockets and couplers
CEAG Enhanced hazardous area plug connectors will NOT mate with standard sockets and couplers
Couplers will accept Enhanced and Standard Plug connector

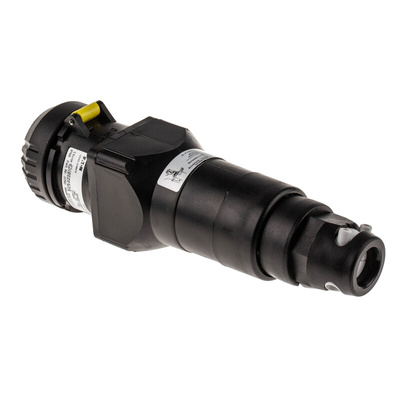

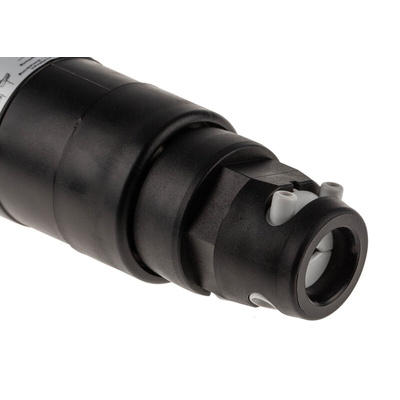

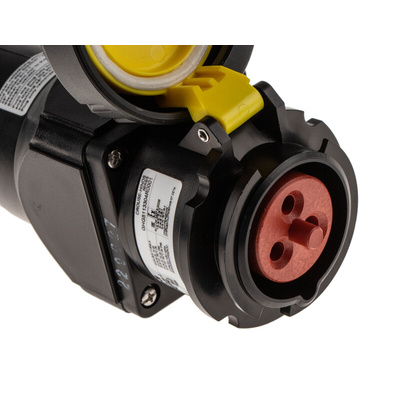

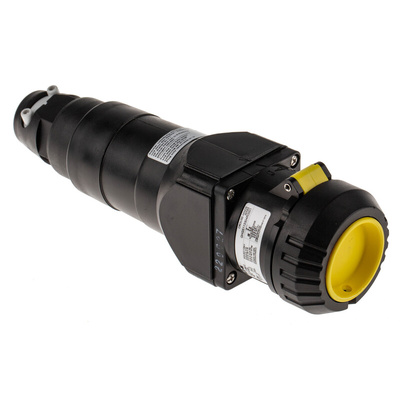

Eaton CEAG Crouse-Hinds Cable Mount Power Connector Coupler, 130V Voltage Rating, 16A Current Rating - GHG5113304R0001

Power your industrial machinery and tools with this cable mount connector from Eaton CEAG Crouse-Hinds. The robust power connector is made from hardwearing nylon, making it suitable for use in harsh industrial environments. A patented plug-and-turn connection method lets you make a quick connection with low insertion force and no tools. It also ensures the coupler mates securely, so there's little risk of it working loose in vibrating conditions. Resistance to corrosion gives this connector an extended service life in humid and damp environments. It's approved for use in hazardous locations where explosive atmospheres may be present.

Features & Benefits

• Durable brass contacts for greater longevity
• IP66 (ingress protection) rated to indicate housing is dust-tight and protected against water jets and rain
• Suitable for indoor and outdoor use for improved versatility
• Includes strain relief to reduce the risk of the coupler breaking, even with regular use

How can I protect this coupler when it's not in use?

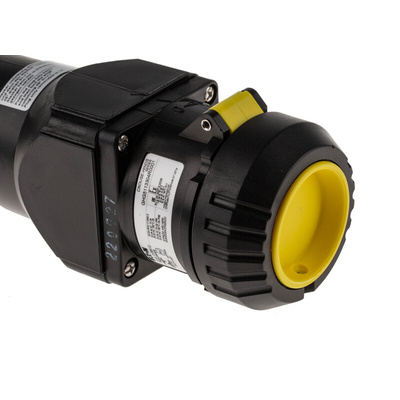

This coupler comes supplied with a hinged cap to protect the connector when it's not mated.

What's the voltage rating of this coupler?

This coupler has a voltage rating of 130V. Its current rating is 16A.

Note

Eaton formerly known as CEAG

Approvals

BS4343; IEC309; Eex de IIC T6; ATEX; PTB ATEC 1039
